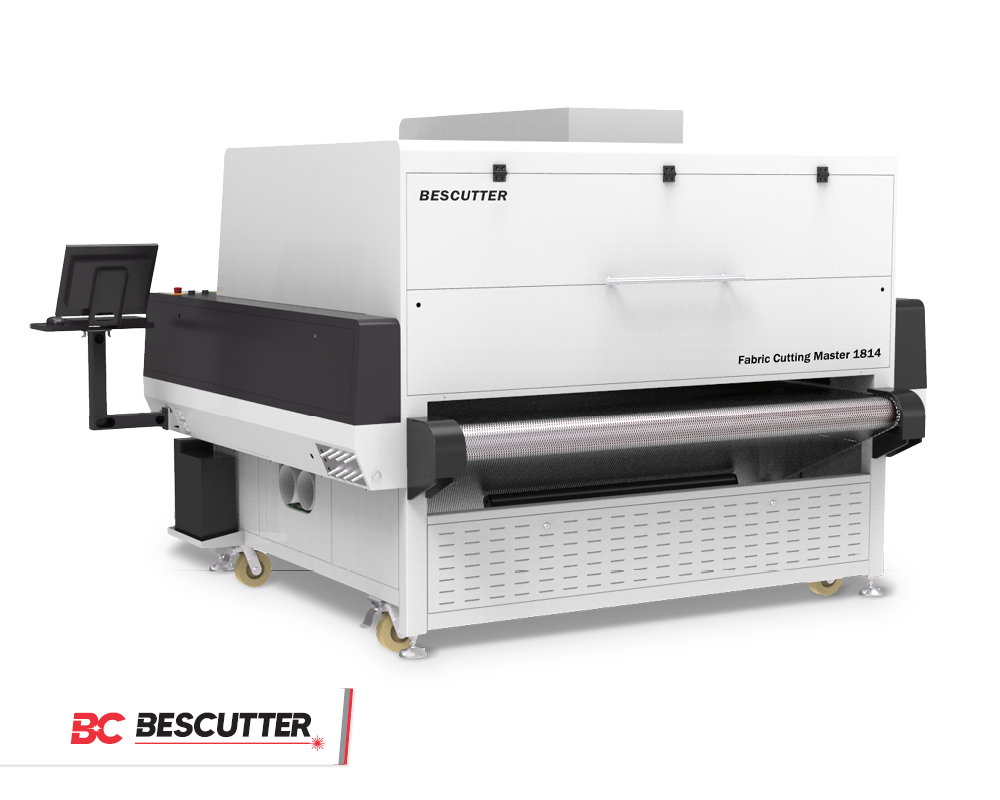

ALL SYSTEM INCLUDED BESCUTTER FABRIC CUTTING MASTER 65″X45″ CO2 LASER CUTTER & ENGRAVER 150W WITH CAMERA, CONVEYOR BELT, ROLL STACKER AND AUTO FEEDER | DOUBLE HEAD AVAILABLE
Price range: $33,950.00 through $35,950.00
Features
- Asynchronous Double Beam Cutting System:Â Can process different patterns simultaneously. High efficiency.
- High-quality Cannon digital camera:Â Achieve large format single shot and image recognition, more efficiency of auto-positioning.
- Large format visual cutting:Â It can scan the whole files at one time, recognize each pattern and do the contour cutting.
- Camera calibration offset compensation: Correct the overall offset after the device has been running for a period of time to ensure precise cutting.
- Professional suction bellow design: Effectively absorb the materials & remove the dust.

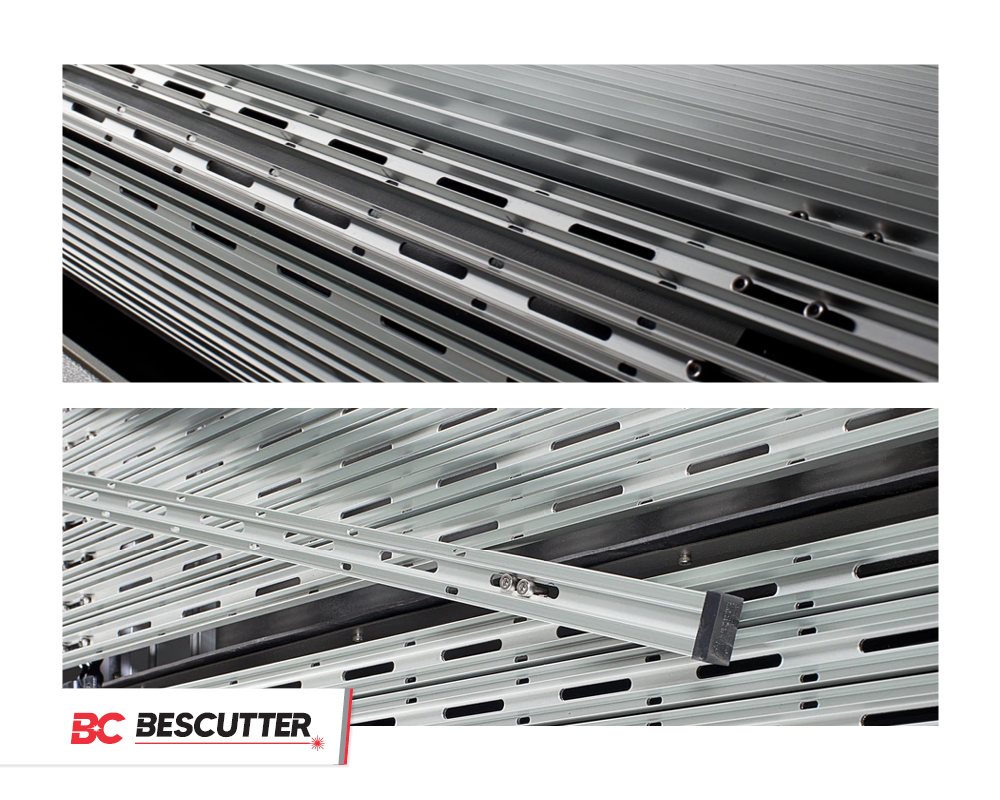

- E-shape blade mesh-designed conveyor: Made by aviation aluminum, lightweight & stable structure. The conveyor can be replaced one by one, easy cleaning & long service life.
- Monorail Cutting System:Â Reduce the wear between the pulley and the guide rail, achieving high efficiency & high precision, and durability.
___________________________________________________________________________________________
TECHNICAL SPECIFICATIONS
| Working Area | 65″ x 45″ (1670 mm x 1150 mm) |
| Laser Power: | 100W (150W Optional) |
| Laser Tube Type: | ECO2, CO2 sealed glass laser tube, 10.6 μm wavelength |
| Laser Tube Lifetime: | 10000 hours |
| Power Supply | AC 220V (±10%) 50HZ |
| Working Area: | 65″ x 45″ (1.670 x 1150 mm) |
| Working Platform: | E-shapes blade mesh, Knife-blade, and honeycomb |
| Z-Axis Displacement: | ±12in (±300 mm) |
| Max Moving Speed: | 28 in/s (700 mm/s) |
| Operation Mode: | Control Panel |
| Machine Dimensions: | 72″ x 56″ x 46″ (1820 x 1420 x 1150 mm) |
| Gross Weight: | 2080 lb (945kg) |
| Class: | Class 4 Laser |
| Reflective Mirror: | 6 sets of Φ25 mm × 3 mm |
| Laser Cutting Head: | Two |
MACHINE CONFIGURATION
| Controlling System: | RuiDa controller RDC6442S·B(EC) |
| Software: | Smart Vision |
| Motion Transmission System: | Stepper motor/Belts |
| Connection Method: | USB cable / Data cable /Ethernet |
| Focus Lens: | “2.5”” Focal Lens |
| Software Compatibility: | Photoshop, Illustrator, CorelDraw, and AutoCAD |
| Technical Support Service: | Zoho Desk Technical Service (Tickets Support) |
| Warranty: | One year, (exclude optics and mirrors) |
| Upgrade Optional: | CCD Camera Canon (Contour cut with registration mark) |
| Certification: | CE, ISO |
AUXILIARY EQUIPMENT:
| Extraction System: | Exhaust fan 1HP / 750W |
| Assistant Air: | Air compressor Hailea 110V |
| Water Chiller: | S&A CW 5200 industrial refrigerated chiller |
laser engraving cutting machine for wood;laser engraving cutting machine for acrylic;laser engraving cutting machine for cloth;laser engraving cutting machine for shoes;laser engraving cutting machine for paper;laser engraving cutting machine for glass;laser engraving cutting machine for ad;laser engraving cutting machine for stamp;laser engraving cutting machine for leather;laser engraving cutting machine for wedding card;laser engraving cutting machine for art;laser engraving cutting machine for plexiglass;laser engraving cutting machine for plastic;laser engraving cutting machine for rubber;laser engraving cutting machine for bamboo;laser engraving cutting machine for plywood;laser engraving cutting machine for PVC;laser engraving cutting machine for TPU
| Power | 150W |
|---|---|
| Edge Auto-detecting Feeder | NO, YES |
