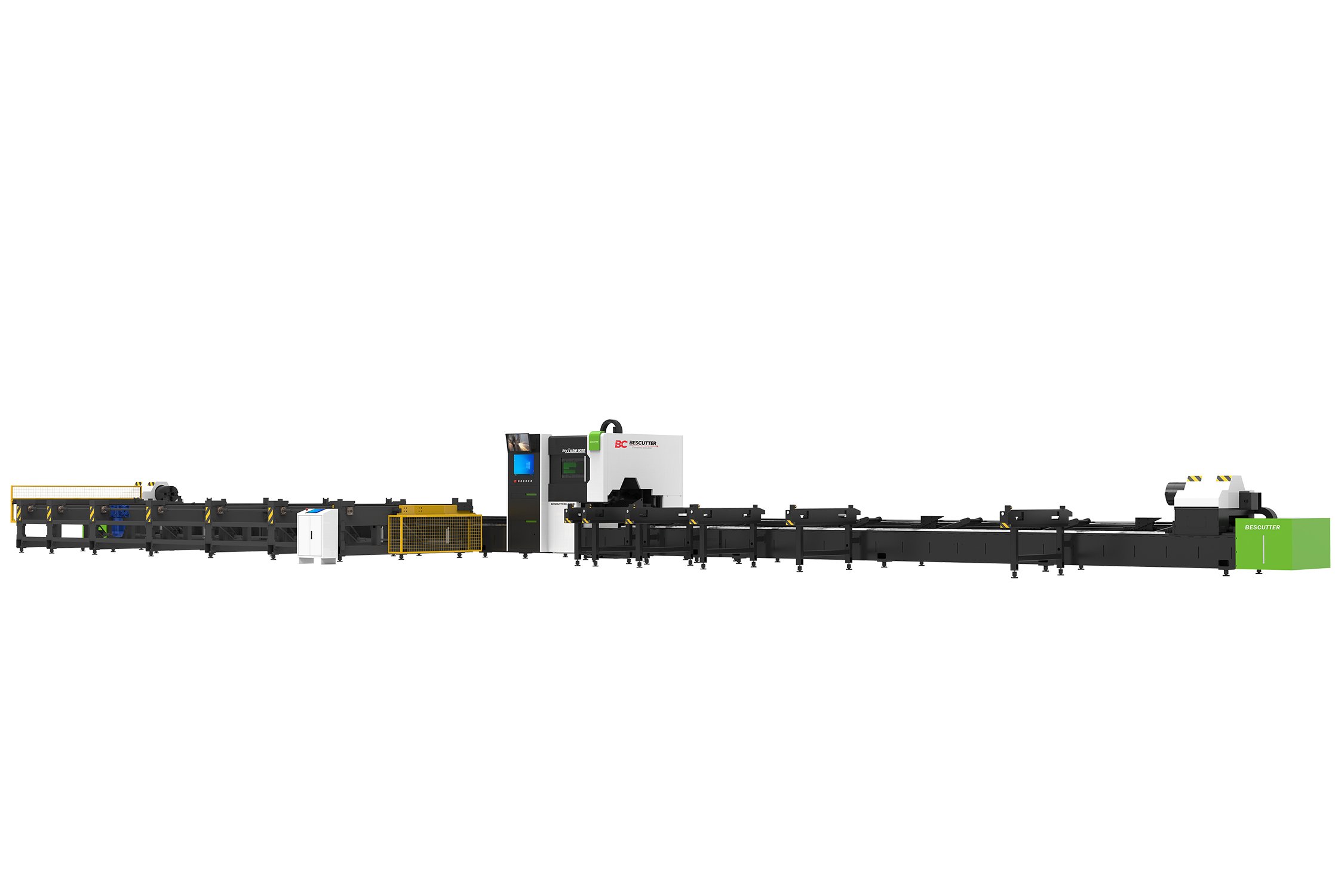

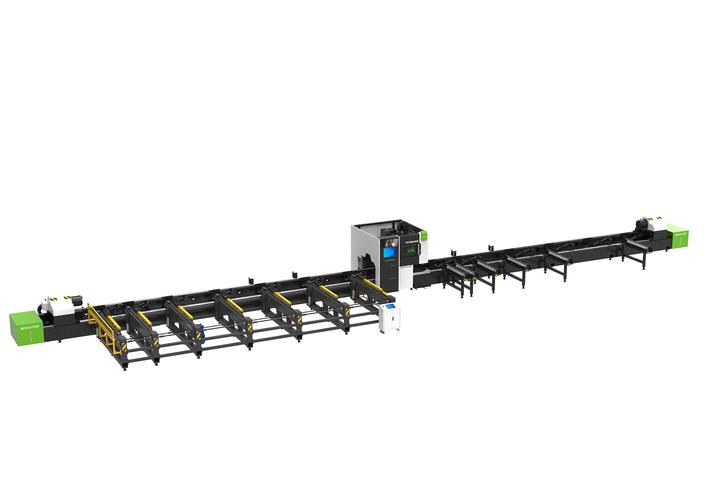

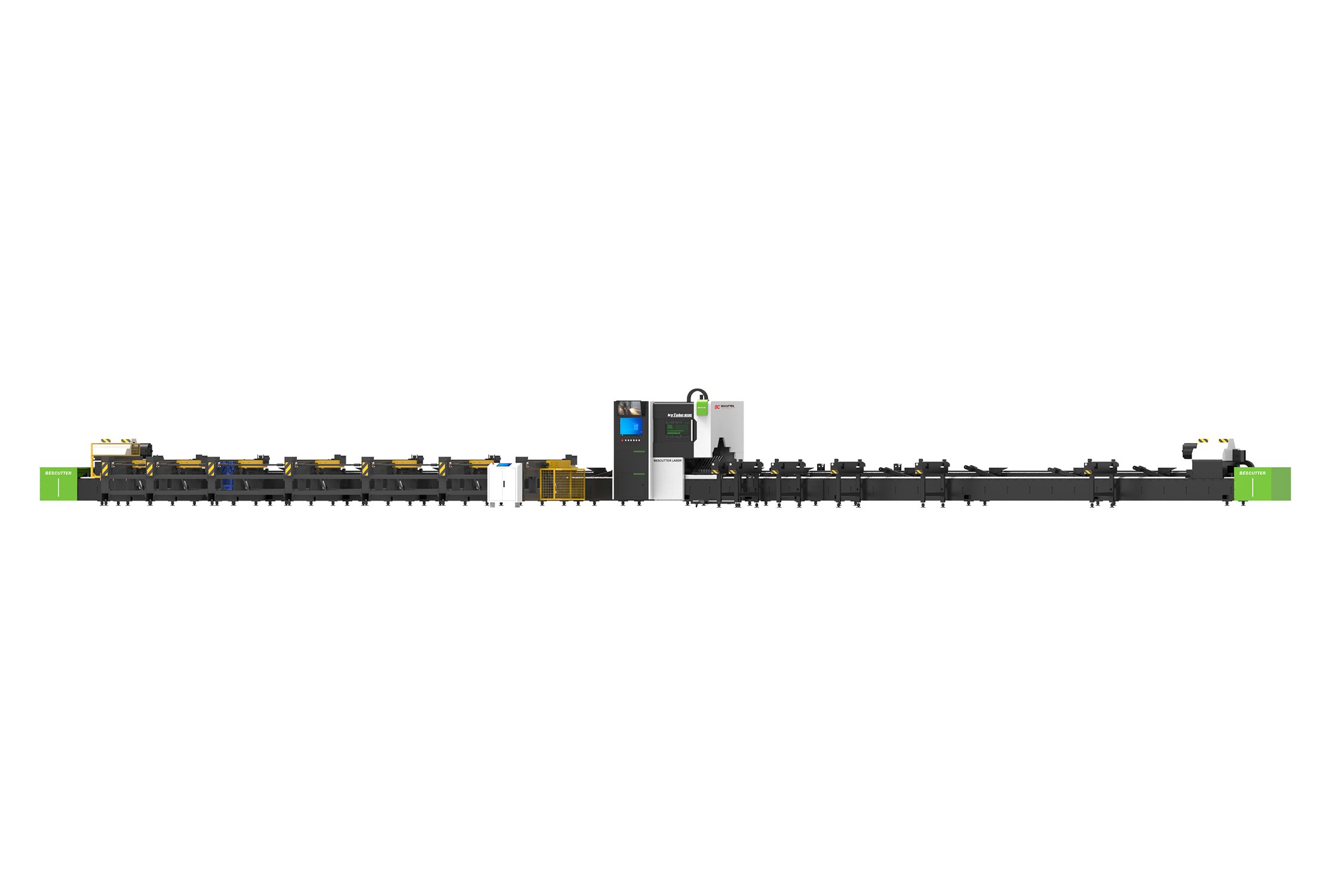

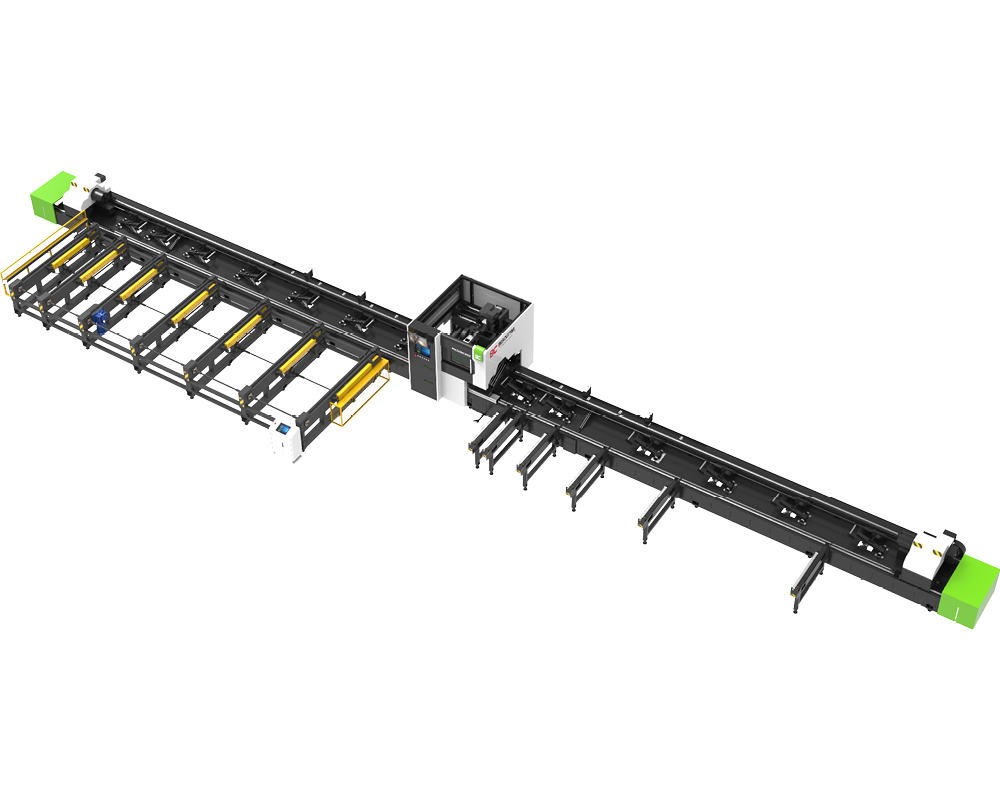

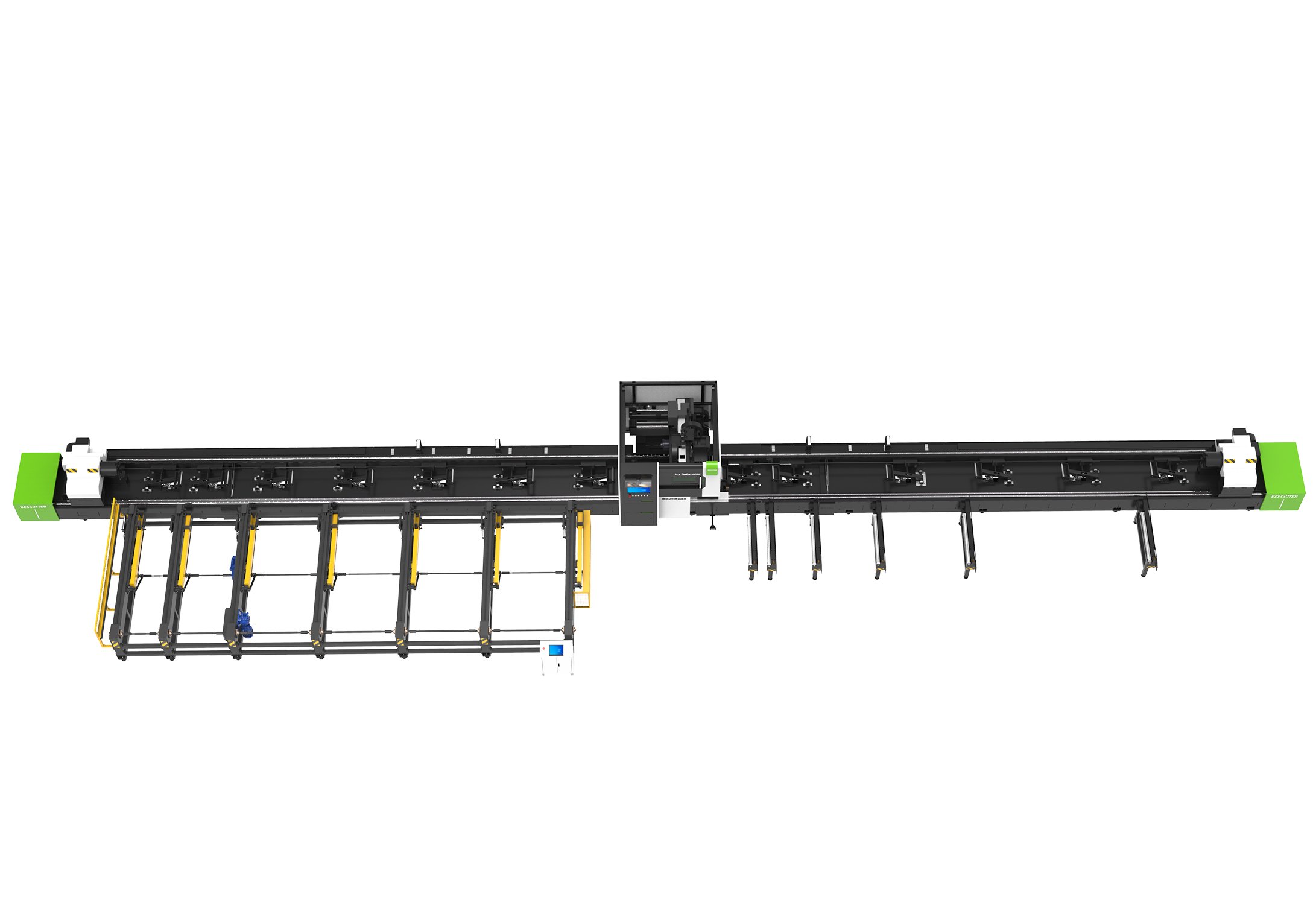

BesCutter 3-Chuck Heavy Tube Cut 2-6KW IPG Fiber Laser Pipe Cutting Machine with Auto Loading

Name: BesCutter 3-Chuck Heavy Tube Cut 2-6KW IPG Fiber Laser Pipe Cutting Machine with Auto Loading
SKU: 114322
Availability: InStock

Price range: $385,000.00 through $510,000.00

Power

Automatic Loader

Clear

Loading 29.5′ long tube, up to 12.2′ diameter around tube.

Cut a variety of tubes, such as a round tube, square tube, triangle tube, rectangular tube, oval tube, and waist round tube.
IPG laser resonator
Germany PRECITEC cutting head
FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI.
0 waste tube cutting
1 whole tub process
2 cutting stations
3 chucks
4 following support points
1102 lbs loading ability
29.5 feet tube support or tailored
Autoloading

_________________________________________________________________________________________

Tube range (length)	29.5′ (9000 mm)
Tube diameter	Square Tube Side: 0.78″- 8.86″ (20- 225 mm) Round Tube Dia: 0.59″- 12.2″ (15- 310 mm)
X-axis	29.5′ (9000 mm)
Y-axis	8.86″ (225 mm)
Auto-loading tube length	157″-354″ (4000-9000mm) tube length detection
un-loading tube length	0- 236″ (0-6000mm)
CNC system	FSCUT5000
X, Y-axis positioning accuracy	±0.05 mm/1000 mm
X, Y-axis re-positioning accuracy	±0.03 mm
A, B-axis positioning accuracy	±30″
A, B-axis re-positioning accuracy	±10″
X, Y-axis max positioning speed	100 m/min
Max positioning speed	60 rpm
Laser resonator	IPG 2 KW (Germany Brand)
Optional laser wattage	IPG 2 KW/ 3 KW/ 4 KW/ 6 KW
Laser head	PRECITEC (Germany Brand)
Machine Weight	28,660 lbs (13,000 kg)
Dimensions (L x W x H) auto-loading not included	984″x 169″ x 110″ (25000 x 4300 x 2800 mm)
Dimensions (L x W x H) auto-loading included	984″x 248″ x 110″ (25000 x 6300 x 2800 mm)

_________________________________________________________________

Power	IPG 2KW, IPG 3KW, IPG 4KW, IPG 6KW
Automatic Loader	YES
