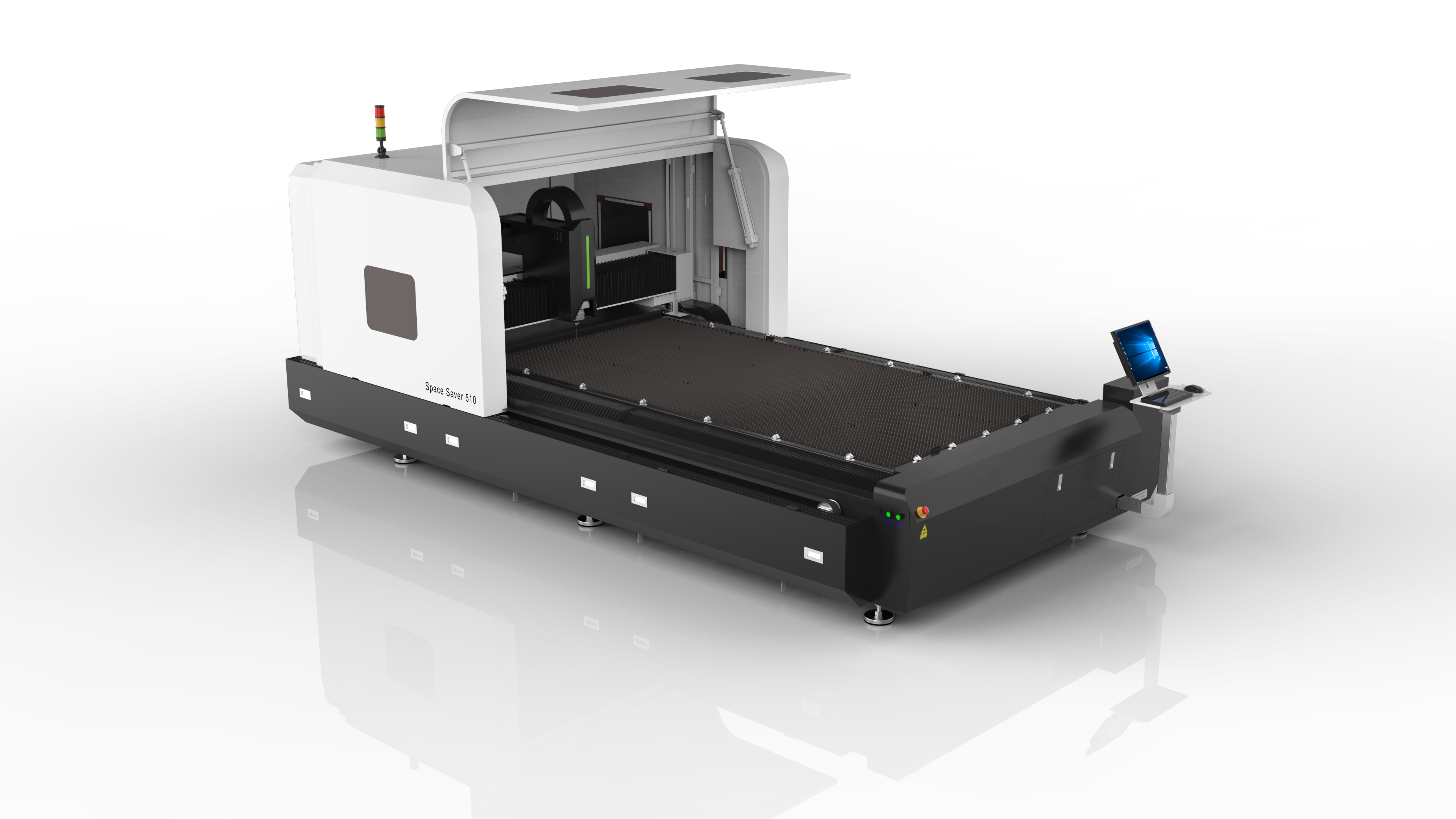

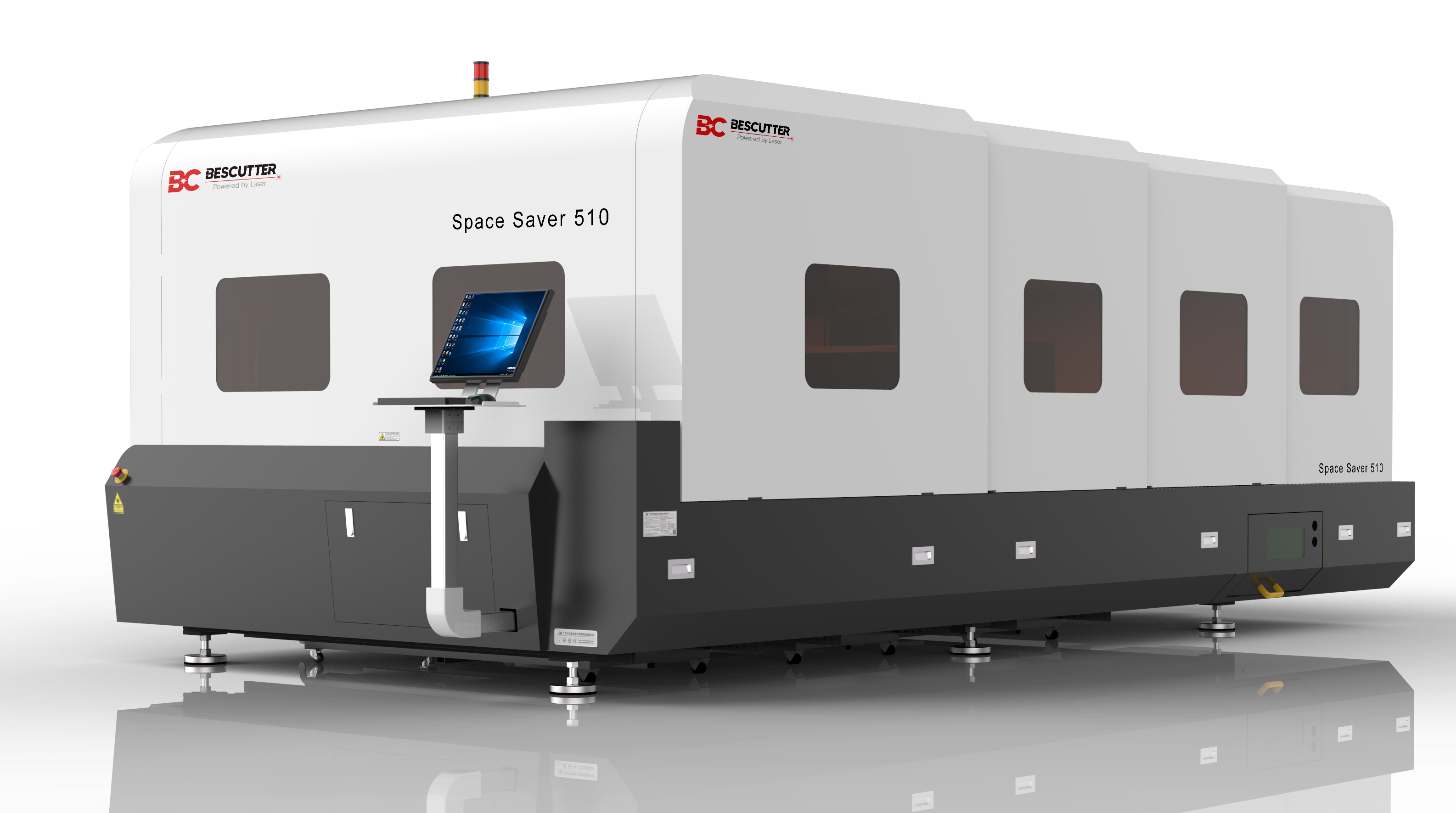

BesCutter Space Saver 1500-4000W 5’x10′ Fiber Laser for Metal Sheet Cutting

Main Features

• IPG Laser Resonator
• Compact design with safety enclosure. Ideal for shop with limited space.
• Full enclosure with retractable housing. Easy loading and unloading.
• Space Saving: no exchange table.
• High rigidity enhanced aviation aluminum gantry.
• Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.

___________________________________________________________________________________________________

Technology Specifications

• Working Area: 60″ x 120 ” (1525 mm x 3050 mm)
• Laser Wattage: 1500 W / 2000 W/ 3000 W/ 4000 W
• Continuous Wave fiber laser, 1.07 um wavelength
• Beam Quality: <0.373 mrad
• IPG Laser Generator
• Laser Head: RayTools (auto focus)
• Control System: CypCut BCS 100
• Cooling System: CWFL-1500, CWFL-2000, CWFL-3000, CWFL-4000  or Comparable
• Driving System: Servo Motors
  XYZ Servo Motors: Schneider Y 2x1500W, X 1x1000W, Z 1x400W
• Max Speed: 60m/min
• Power Supply: Three phase 208V/ 240V / 480V (transformer included)
• Overall Size: 233″L X 106″W x 90″H
• Weight: 7716 lbs
• Format: LXD, DXF, PLT, AI, NC etc.
• High Quality Rack and Pinion Guide Rails
