Product Detail

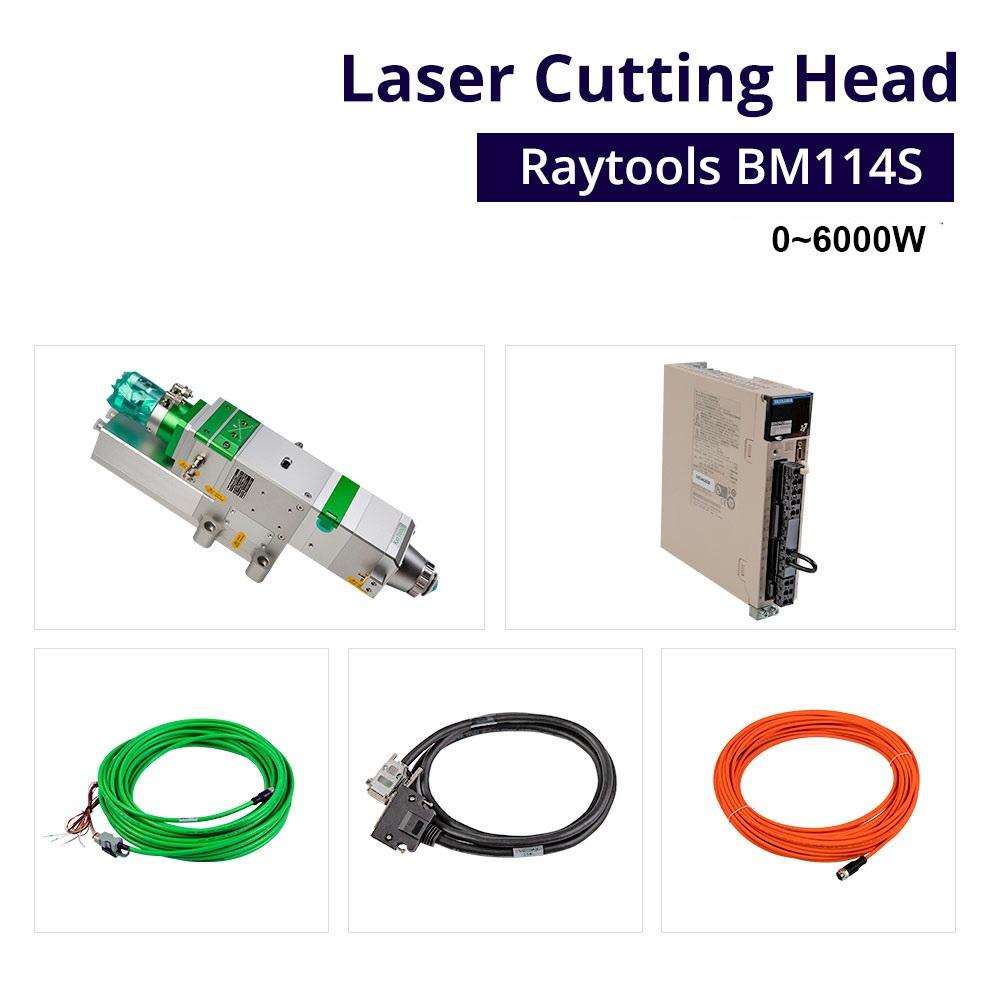

BM114S series – autofocusing cutting head, which was released by Switzerland RAYTOOLS AG in 2017. BM114S comes with the built-in motor and drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid per piercing of thick sheets or other different thickness and material sheets. The product can be equipped with large clear aperture lens group to integrate the light beam. The heads have diversification interface settings that allow a variety of fiber lasers. The optimization of optical design and the design of water-cooled allows laser heads stably and chronically to work at high-power lasers.
Features
- Rated to 6KW optical power at 1μm, with D37 lens group, and more strength to cut thick plate
- Autofocus ranges +10~-14mm, accuracy is 0.05mm;
- The maximum acceleration of focus lens drive is 10m/s2, maximum speed is 10m/min

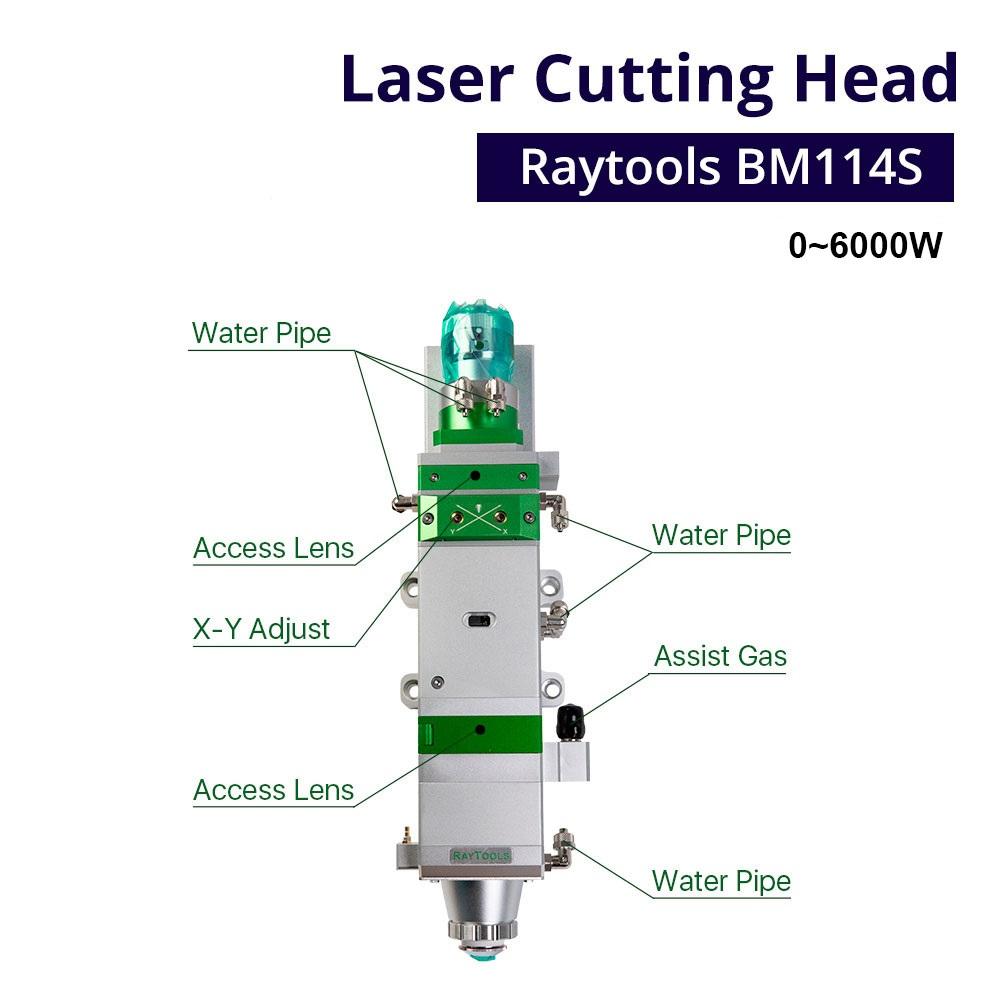

- Collimation and focusing lenses are both water-cooled. Increase airflow cooling for the nozzle, effectively protect the nozzle and ceramic body and the lifetime
- 35mm clear aperture, effectively reducing stray light interference, guarantee cutting quality and service life
- 5.6KG,compact structure, reduce the mechanical requirement
Specifications
Power Rating | ≤6KW |
Clear Aperture | 35mm |
Collimation protective glass | φ38mm*1.5mm |
Focusing protective glass | φ37mm*7mm |
Autofocus | Range:+10~-14mm |
Acceleration:≤10m/s2 | |
Velocity:≤10m/min | |
Accuracy:≤50μm | |
Assist gas Pressure | ≤30bar |
Weight | ~5.6kg |

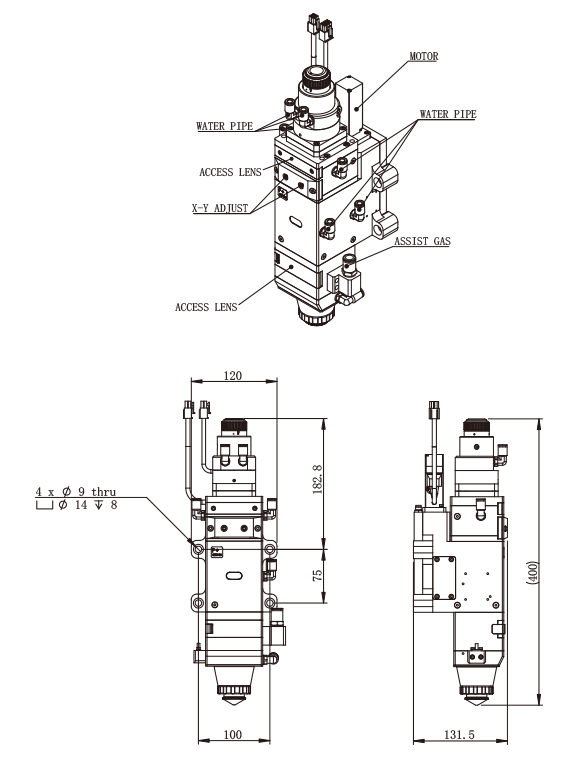

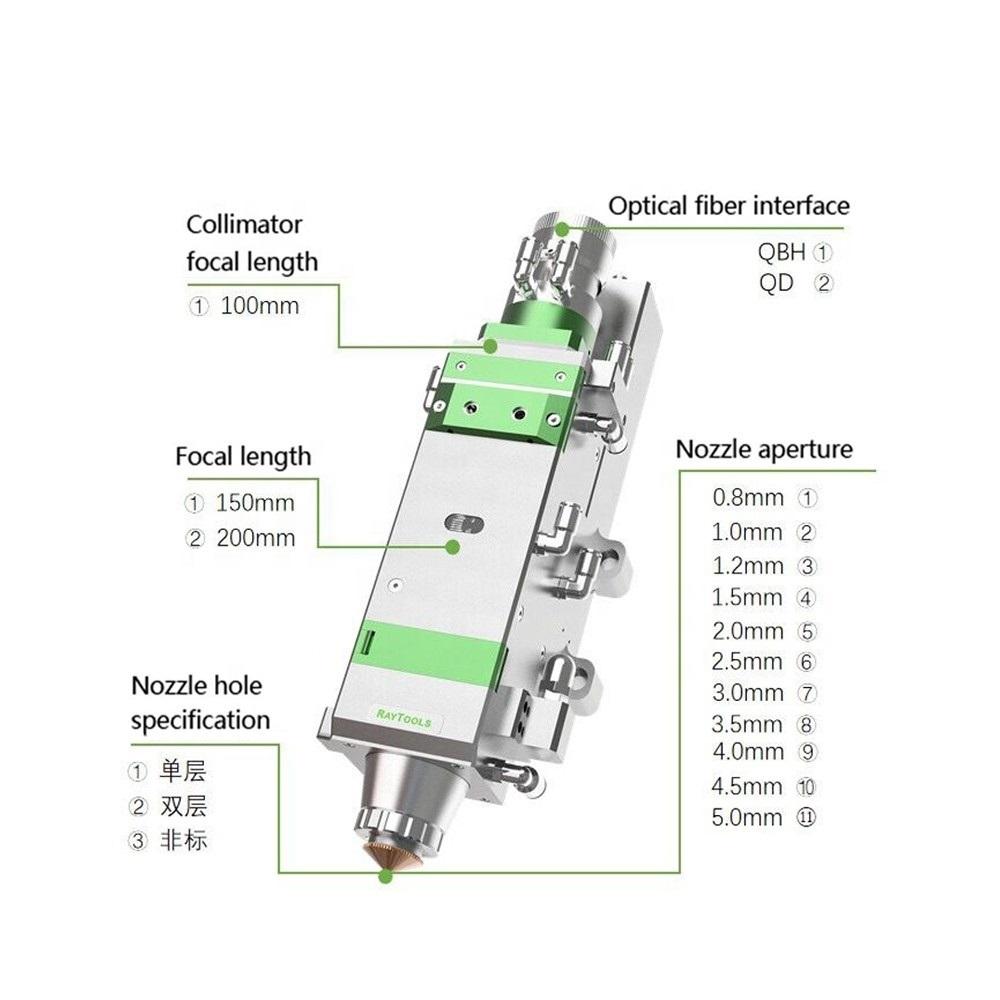

Collimator Focal length | 100mm |
Focusing Focal length | 150mm, 200mm |
