Bescutter, Fiber Laser Accessories

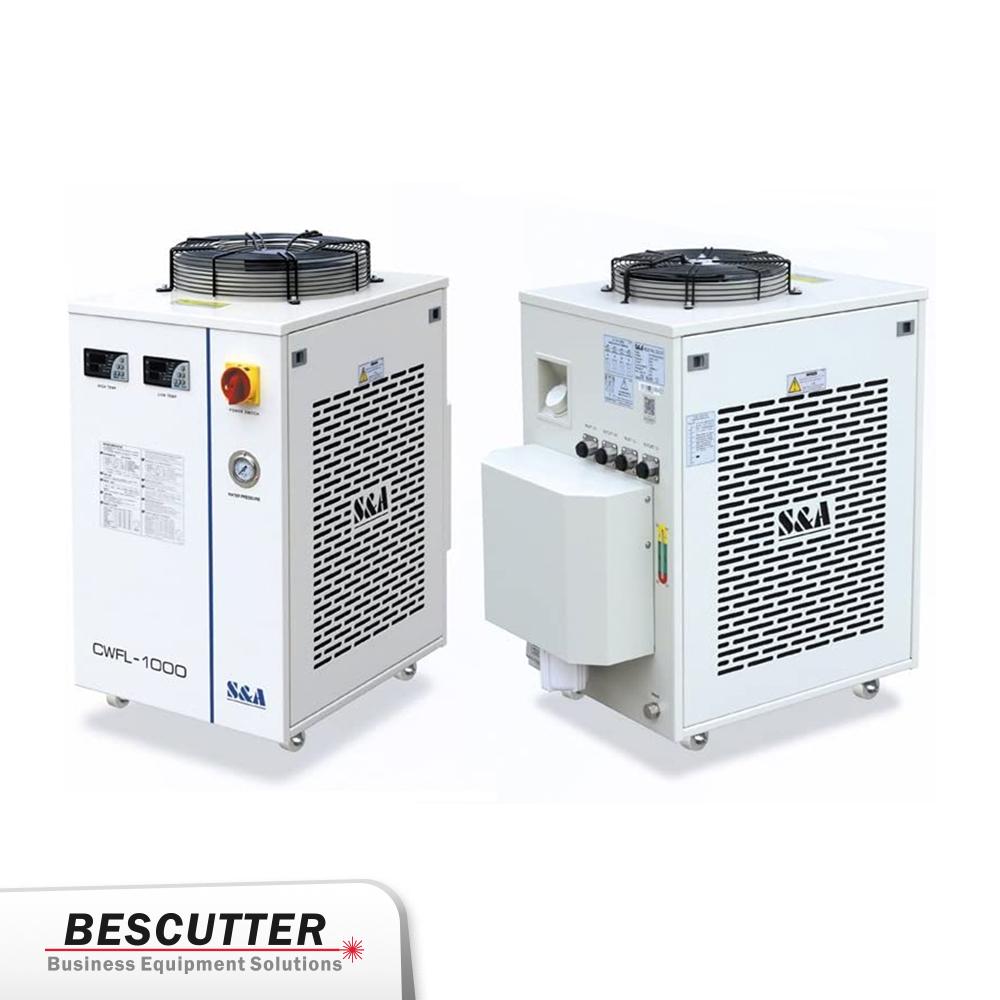

Industrial Refrigerated Water Chiller CWFL-1000BN For Fiber Laser 1000W
$2,000.00
MAIN FEATURES
- With environmental refrigerant;
- ±5℃ precisely temperature control;
- The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions
- Dual temperature to satisfy different needs of the fiber laser device and the optics;
- With Ion adsorption filtrating and test, functions conform to fiber laser device operating requirements
- Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high / low-temperature alarm;
- Multiple power specifications; CE approval; RoHS approval; REACH approval;

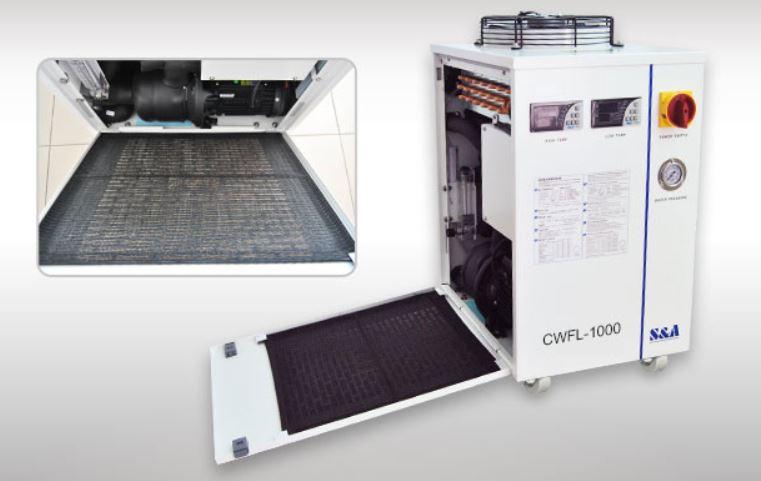

- Optional heater and water filter.
| Model: | CWFL-1000BN | ||
| Voltage: | AC 1P 220V | Tank Capacity: | 15L |
| Frequency: | 60 Hz | Inlet and Outlet: | Rp 1/2″ + Pp 1/2″ |
| Current: | 3.4 ~ 14A | Lift: | 45M |
| Machine Power: | 1.48 KW | Rated flow: | 2 L/min +> 12 L/min |
| Electric assisted power: | 400W + 600W | N.W. | 67 Kg (148 lbs) |
| Precision: | ±0.5°C | G.W. | 77 Kg (170 lbs) |
| Reducer: | Capillary | Dimension | 70 x 47 x 89 cm (LxWxH)
(27.6” x 18.5” x 35”) |
| Pump power: | 0.55 KW | Package dimmension | 74 X 61 X 104 cm (LxWxH)
(29.3” x 24” x 40.9”) |
