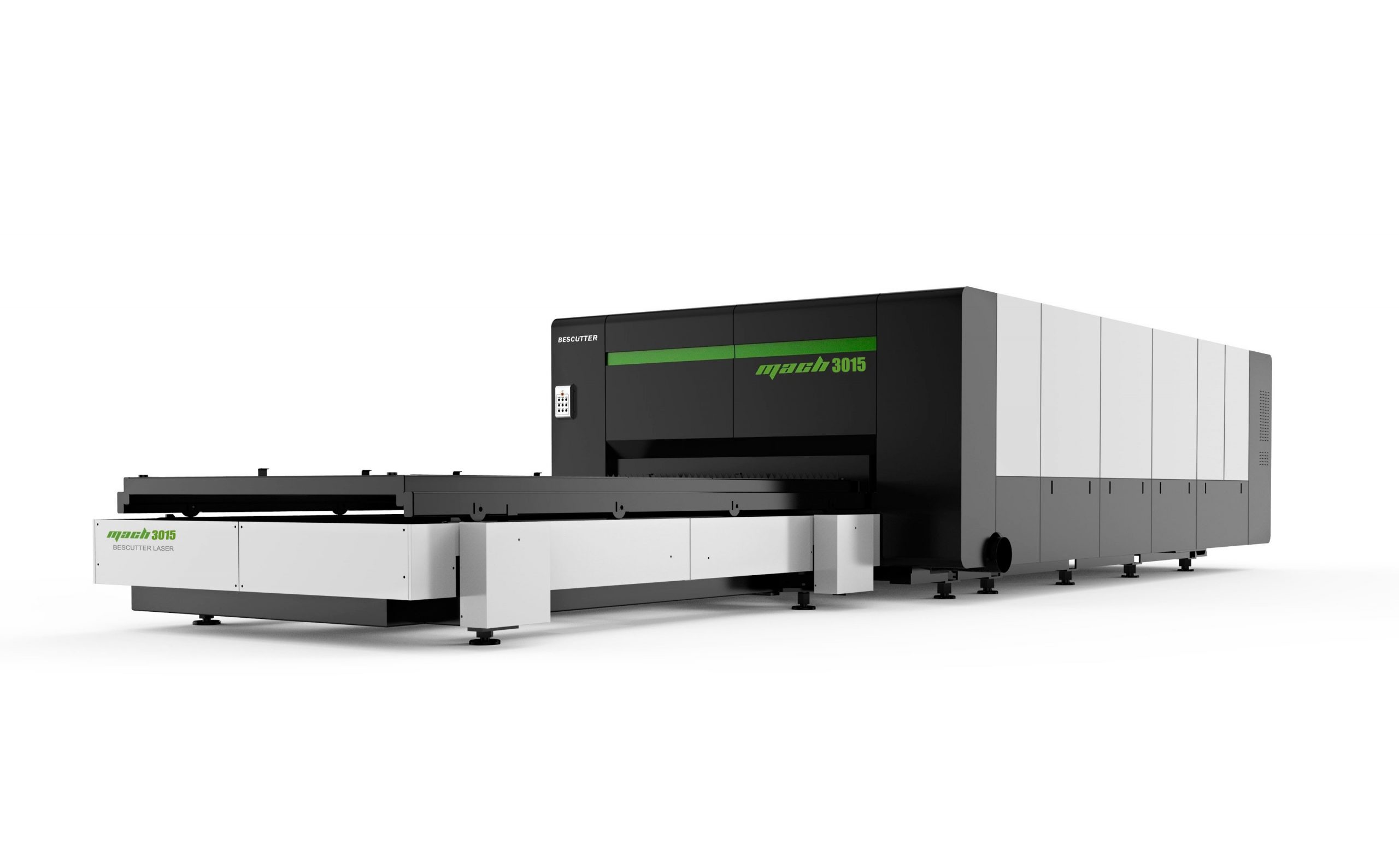

BesCutter Mach Speed 6-15KW 5’x10′ IPG Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table

Price range: $410,000.00 through $750,000.00

ASK PRICE for 8KW/ 10KW/ 12KW/ 15KW

MACHINE INTRODUCTION

  • Germany brand of major components
  • IPG laser resonator
  • PRECITEC laser cutting head
  • Beckhoff CNC controlling system
  • Direct drive system with high torque servo motor
  • Auto energy-saving mode
  • Auto exchanging table with hydraulic lifting system
  • Eagle eye technology (optional)

MACHINE VIDEO

TECHNICAL PARAMETER

Standard working area 61″ x 120″ (3050 x 1550 mm)
Optional working area 157″ x 78.7″/ 236″ x 98.4″/ 315″ x 98.4″
X, Y, Z  axis distance 61″ (3050 mm)/120″ (1550 mm)/3.93″ (100 mm)
X, Y Two-axis coordinated positioning speed (MAX) 240 m/min
Positioning acceleration (MAX) 2.4 G
Positioning accuracy ±0.05 mm/m
Re-positioning accuracy ±0.02 mm
Maximum load weight 890 kg
Laser resonator IPG  (Germany Brand)
Laser head PRECITEC (Germany Brand)
Controlling System Beckhoff (Germany Brand)
X-Y-Z Servo Motors X-2x9700W;  Y- 1x6880W ;  Z-1x940W
Machine Weight 28200 lbs (12800 kg)
Dimensions 350″x 118″ x 87″ (8900 x 3000 x 2200 mm)

_________________________________________________________________

MACHINE FEATURES

  • IPG laser resonator (3 years warranty)
IPG-YLS Specification YLS-6000
Laser mode CW,QCW
Wavelength 1070-1080nm
Standard output laser power 6000W
Laser beam quality ≤4mm*mrad
Modulation speed 5kHz
Delivery fiber core diameter ≥50μｍ
Output stability ±2%
Power supply 400-460V/3P+PE@50-60Hz



  • PRECITEC Laser Head



  • Beckhoff controlling system
Dual CoreTM i3 CPU +3.1GHz
RAM： 4G
Hard disk： 1TB
21.5″ touch screen
USB, network and DVI interface, etc.



  • High-rigidity welded body, compact design, and stable performance
  • Auto exchanging shuttle table with hydraulic lifting system
  • High torque direct drive servo motor – Alpha (powerful driving, high accuracy cutting, and excellent dynamic response)

  • High-pressure servo-control valve  (switch the type of cutting gas automatically, and  accurate control the gas pressure without user intervention)

  • Nesting software  (CutLeader laser cutting auto-nesting software)
  • Special molding technique made aviation aluminum gantry
    • All-aluminum cast beam
    • Lightweight, strong rigidity
    • Fast response, high precision, and good stability

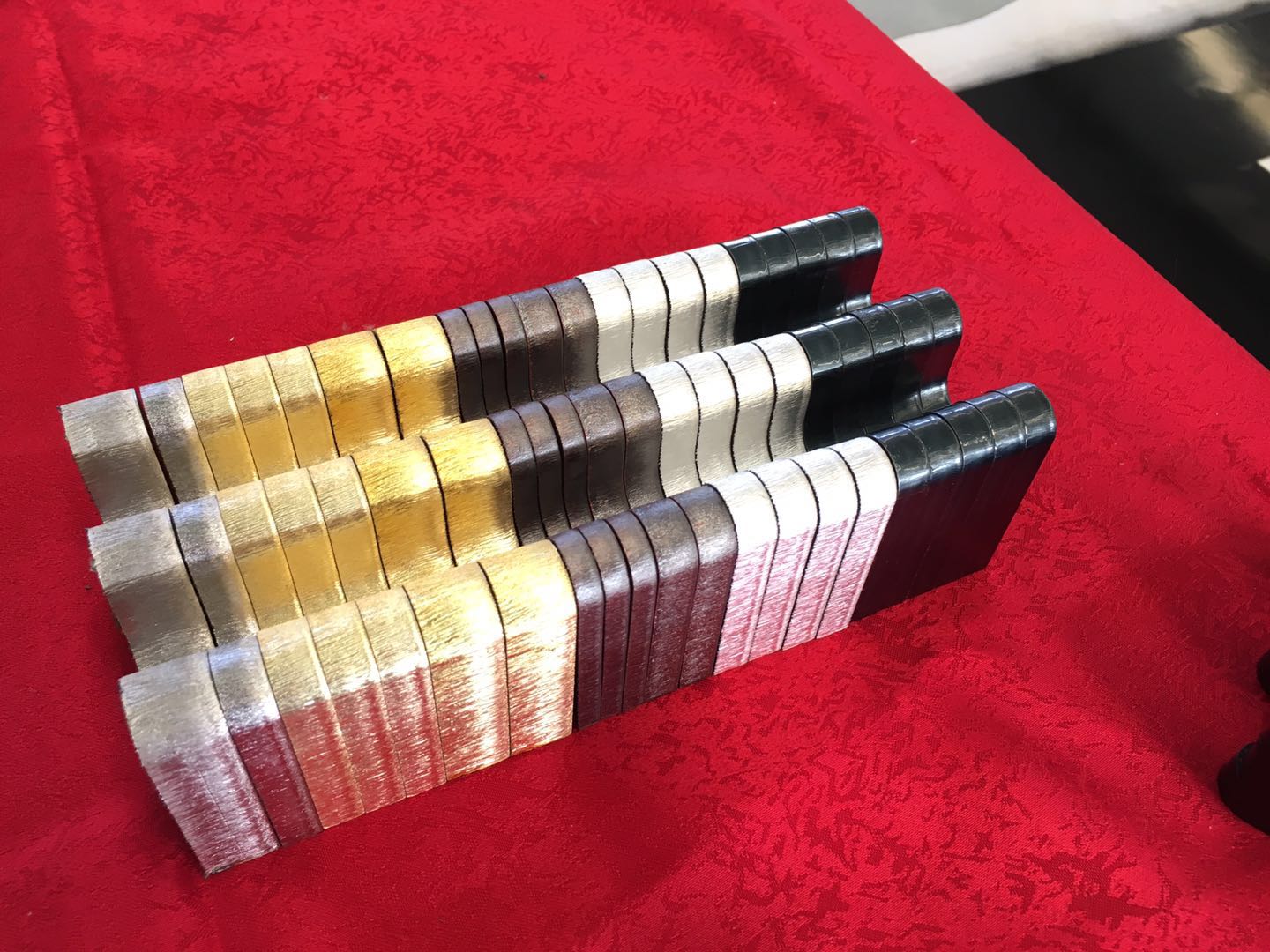

HIGH POWER
CUTTING CAPABILITIES

SKU: N/A Categories: , ,
Power

IPG 6KW, IPG 12KW, IPG 15KW
Size

5'X10', 6.5'X13'
