Bescutter, Bescutter Galvo Laser, Enclosed Laser Engraver & Markers

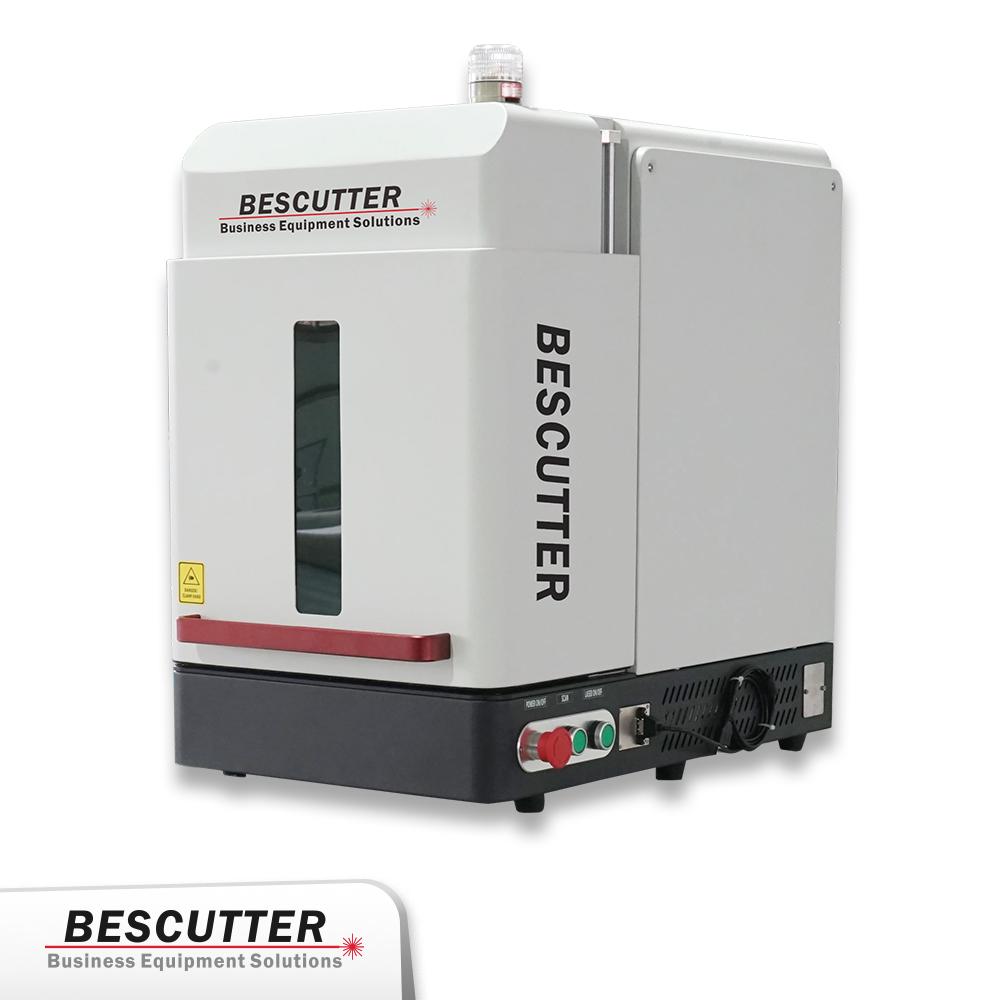

BesCutter Mini Enclosed type Galvo 30W Fiber Laser Marking Machine. Stock Available
$6,999.00 $12,900.00
Main Features
- Full Protection from Fiber Laser
- High Precision and Unparalleled speed

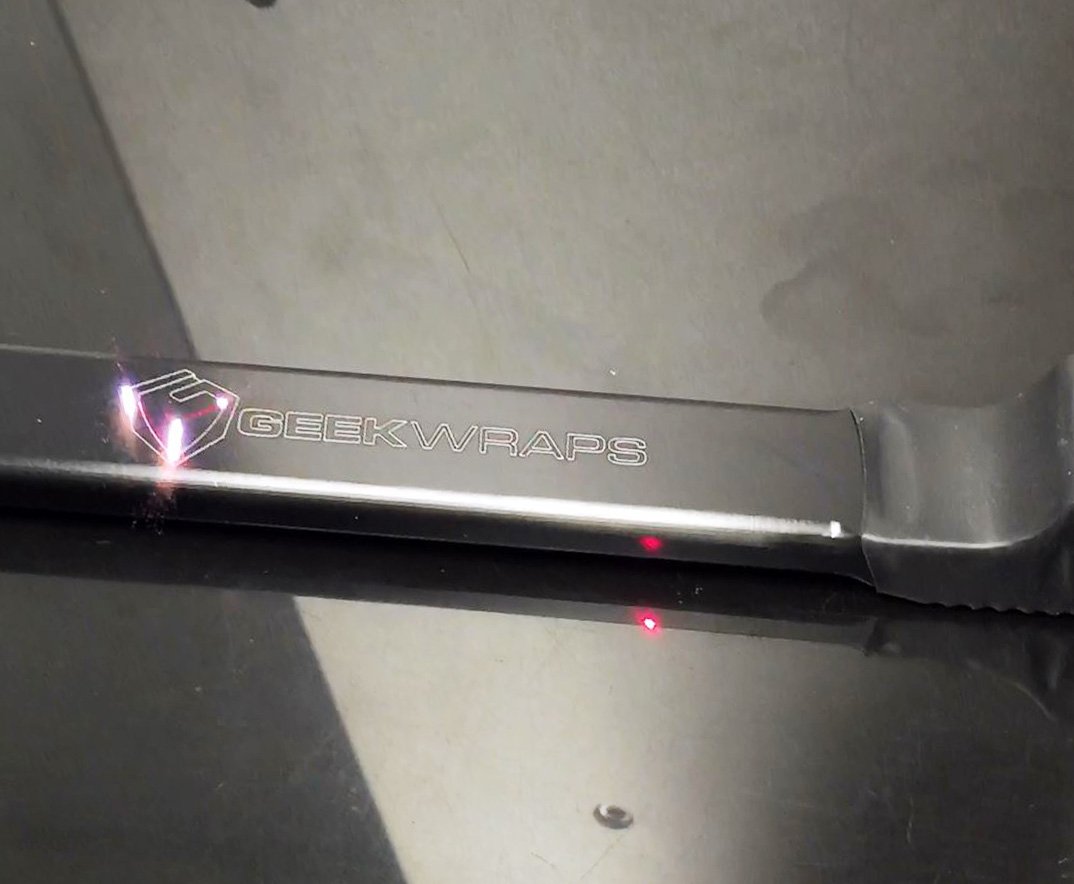

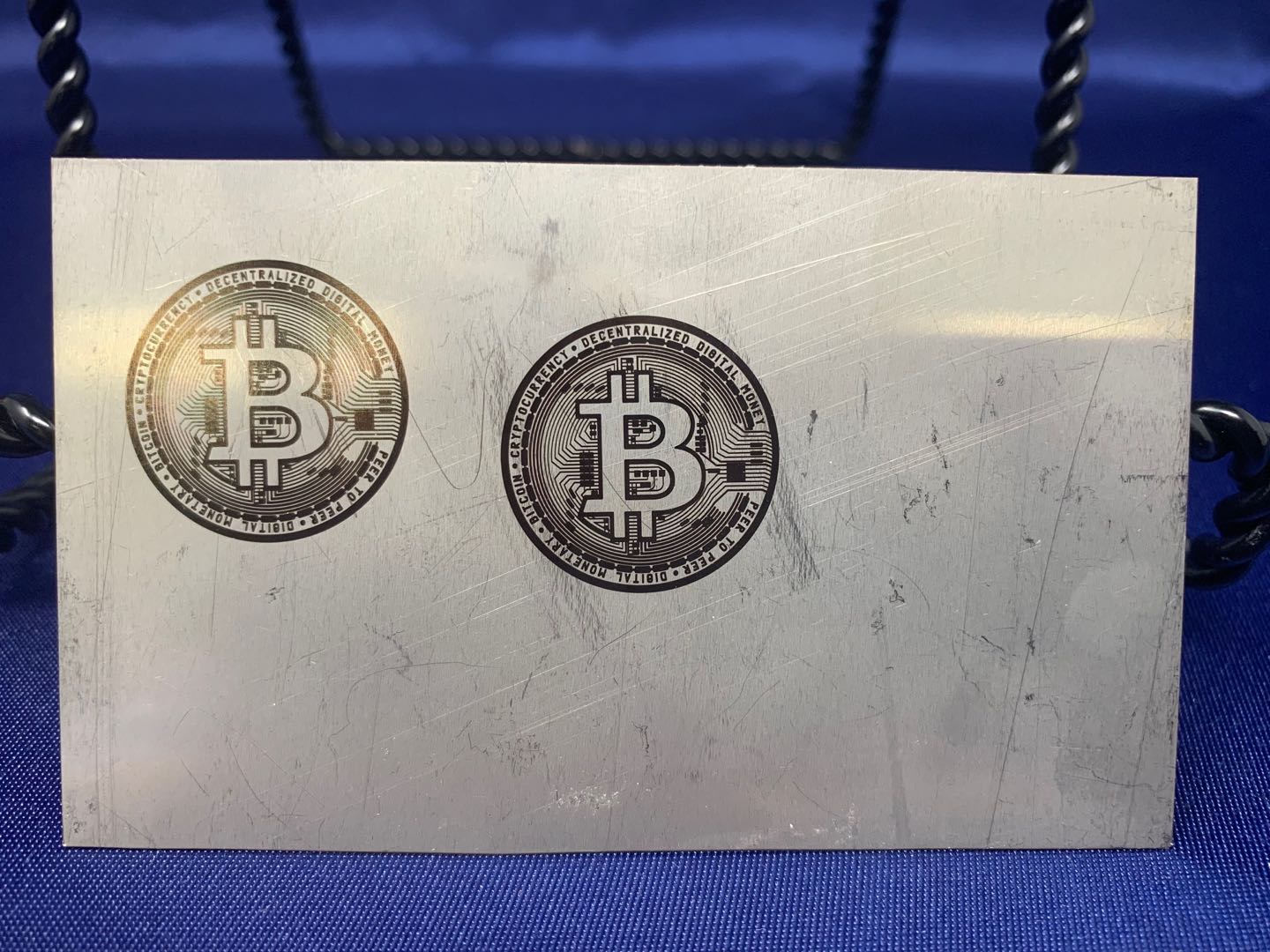

- Applications: metals and some type of non-metal materials
- Two Red Dots for easy focal length adjustment
- Visible Red Laser for alignment and preview
- Motorized up/down adjustable Z-axis
- FREE operating software -Ezcad (Compatible with CorelDraw, AI, Auto-cad, and Photoshop.)
- FREE one pair of laser protection goggles
- No moving parts, no consumables, maintenance-free
- Two years warranty on all parts and remote service
Technology Specifications
| Laser Generator: | Raycus 30W |
| Laser Source Life Time: | 100,000 + hours |
| Standard Marking Area: | 4.3” x 4.3” (110 mm×110 mm) |
| Optional Marking Area: | 150 x 150 mm /175 x 175 mm/ 200 x 200 mm |
| Galvanometer Scanner: | Sino-Galvo |
| F-θ Lens: | Wavelength (Singapore Brand) |
| Marking Speed: | up to 7000 mm/s |
| Laser Wavelength: | 1.06 um |
| Beam divergence: | 0.3 mrad |
| Focused beam diameter: | <=20 um |
| Min. line width: | 0.015 mm |
| Min letter size: | 0.1 mm |
| Marking depth: | 0.03-0.5 mm |
| Power Supply: | 110 V / 60 Hz |
| Cooling: | Air-cooled, no extra cooling needed |
| Working Environment: | Temperature: 0-104°F; Humidity: 30% – 85% |
| Machine Dimensions: | 20 x 30 x 27″ (500 x 710 x 675 mm) |
| Net Weight: | 132 lbs (60 kg) |
Must-Have Features
Our Galvo fiber laser allows for ease of operation because we have incorporated many features that make every job easier:
- FAST SHIPPING
- Premium after-sales Service (Call us if any issues arise, our experienced, customer-oriented technicians will help you solve the problem by video call or team viewer software.)
- All accessories in stock
- Free laser protection goggles
| Weight | 15 lbs |
|---|---|
| Dimensions | 100 × 100 × 100 in |
