BesCutter HyStore Automatic Loading & Unloading and Storage System For Fiber Laser Cutter


$300,000.00

Apply Today Through CIT Bank!

Laser cutting flexible production line is based on MACH and WIND series laser cutting machines. In combination with the integrated flexible system developed on the Beckhoff system, the whole flexible production line has many features that will benefit users.

MAIN FEATURES  (for more details, please contact our sales)

  • EtherCAT Bus Communication, easy for communicating with other machines;
  • The autoloading platform can seamless docking with a forklift for rush order inserting problems;
  • Independent loading and unloading vacuum, improve the production efficiency.
  • Fully automatic intelligent production, unmanned, greatly saving labor costs
  • Automatic loading and unloading, greatly improve production efficiency
  • Multi-level material storage unit greatly saves the site and improves the utilization rate of the site
  • Modular design can achieve single and multi-machine linkage loading and unloading

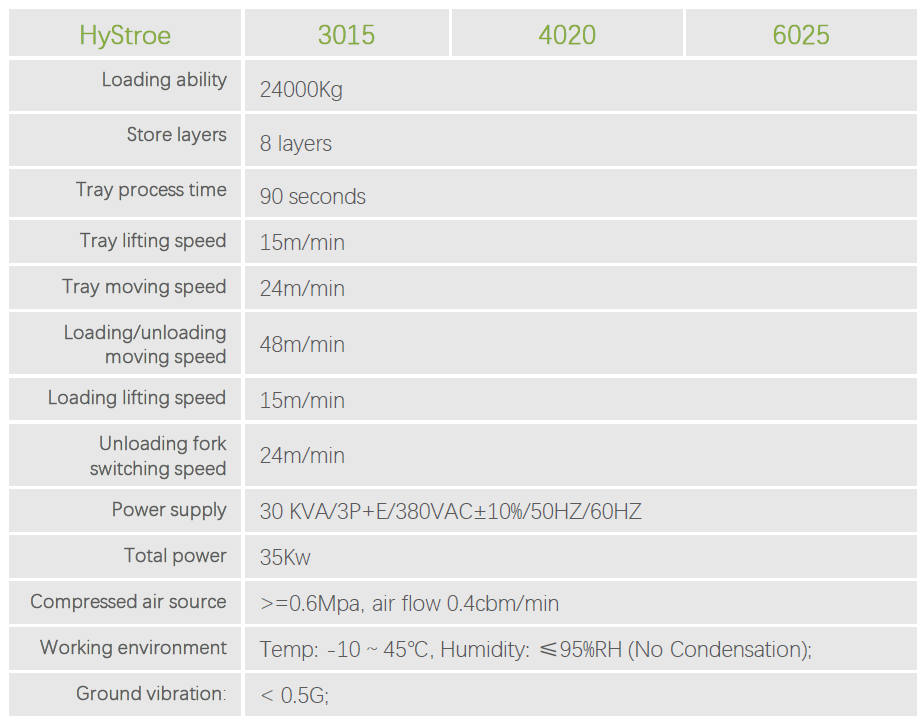

TECHNICALS PARAMETERS

Number of store layers 8 levels
Max tray lifting speed 0.25m/s
Max tray translational moving speed 0.4m/s
Max translation speed of loading mechanism 0.8m/s
Max lifting speed of loading mechanism 0.25m/s
Max translation speed of unloading mechanism 0.8m/s
Max lifting speed of unloading mechanism 0.25m/s
Unloading fork switching speed 0.4m/s
Vibration value 〈0.5G
Running beat 905
Storage load 24MT
The scope of work 3000mmx1500mm
Overal l dimensions 13150mmx4800mmx4840mm
Working environment temp: -10-45℃ humidity: ≤95%RH no condensation
Power supply 30 KVA/3P+E/380VAC±10%/50HZ
Air source the working pressure shall not be lower than 0.6mpa, and the flow rate shall not be lower than 0.4m³/min
