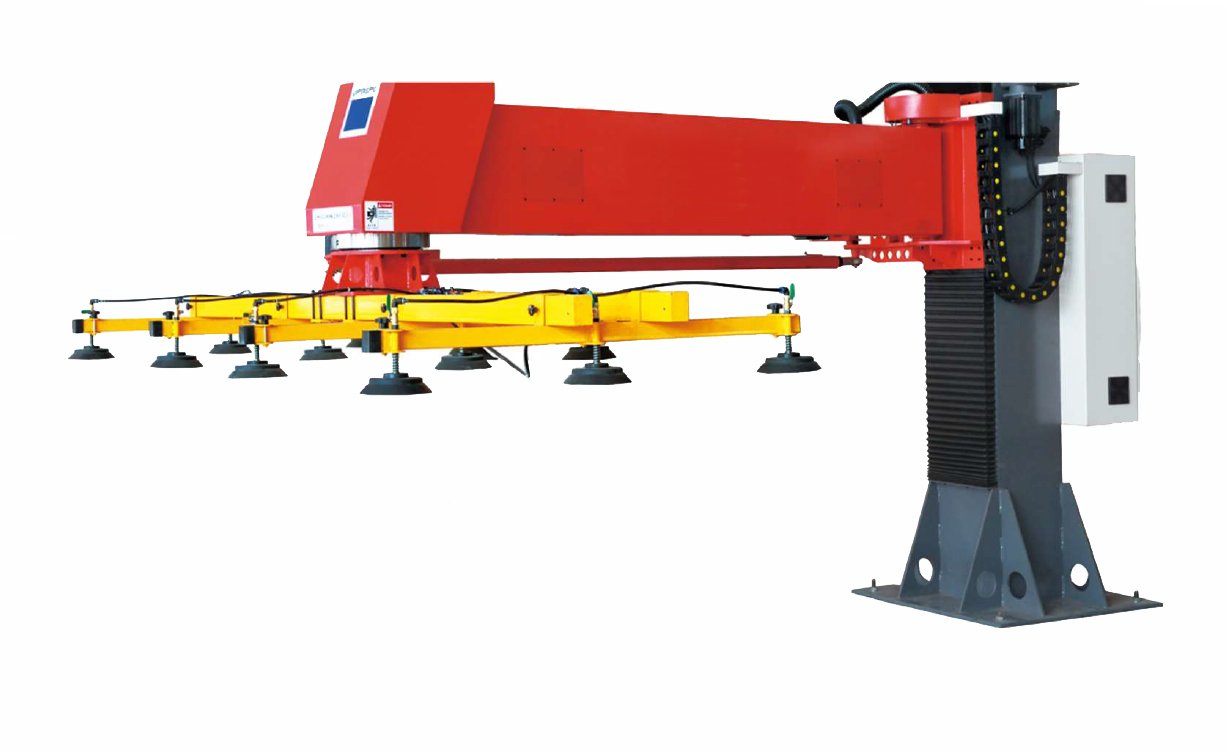

BesCutter Automatic Feeding Manipulator for Fiber Laser Cutting Machine


$20,000.00$35,000.00

Apply Today Through CIT Bank!

MAIN FEATURES

  • Effectively reduce the labor intensity of operators, improve production efficiency, and avoid safety hazards.
  • 15 sets of Japanese PFG-150-N Oil-resistant suckers are adopted, with large suction and long service life, which can effectively avoid scratches on the plate.
  • The user controls the touch screen to switch between automatic feeding mode and manual feeding mode, suitable for different work.
  • An intelligent automatic start-stop system, energy-saving, and environmental protection.
  • The motion of the manipulator is driven by high speed and large torque servo motor, with the original imported linear guide rail, fast running speed and high positioning accuracy.
  • All Settings, monitoring, debugging can be operated on the touch screen, quick and simpleTECHNICALS PARAMETERS



    Name Servo Automatic Feeding Manipulator
    Model  SL-300, SL-500, SL-750
    SL-300 Loading Capacity 300kg 660lb
    SL-500 Loading Capacity 500kg 1100lb
    SL-750 Loading Capacity 750Kg 1650lb
    Working Height 500mm – 1200mm
    Compressed Air 0.6Mpa
    Suitable for feeding Sheet Size 2000mm x 4000mm
    Lifting Speed  5-10m/min
    Rotation Speed 3-10r/min
    Manipulator Height 2650mm
    Arm Span 3000mm
SKU: N/A Categories: ,
Loading Capacity

660LBS, 1100LBS, 1650LBS
