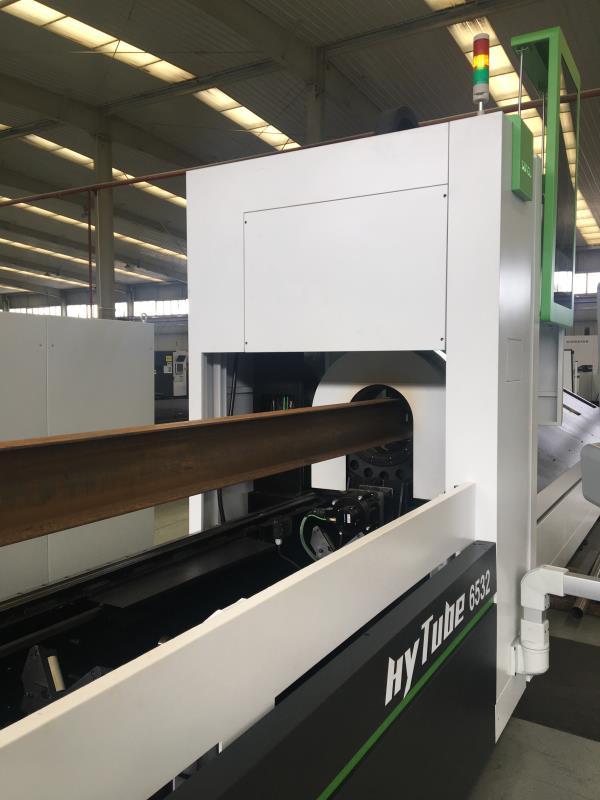

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 2

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 3

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 4

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 5

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 6

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 7

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 8

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 9

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 10

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 11

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading - Image 12

Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe

BesCutter HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading

Price range: $255,000.00 through $330,000.00

Power

Automatic Loader

Clear

Description
Specification

Optional Diameter: 160mm 6.3″ | 220mm 8.6″ | 320mm 12.6′ | 400mm 15.7″ | 500mm 19.7″

MACHINE VIDEO

PRODUCT INTRODUCTION

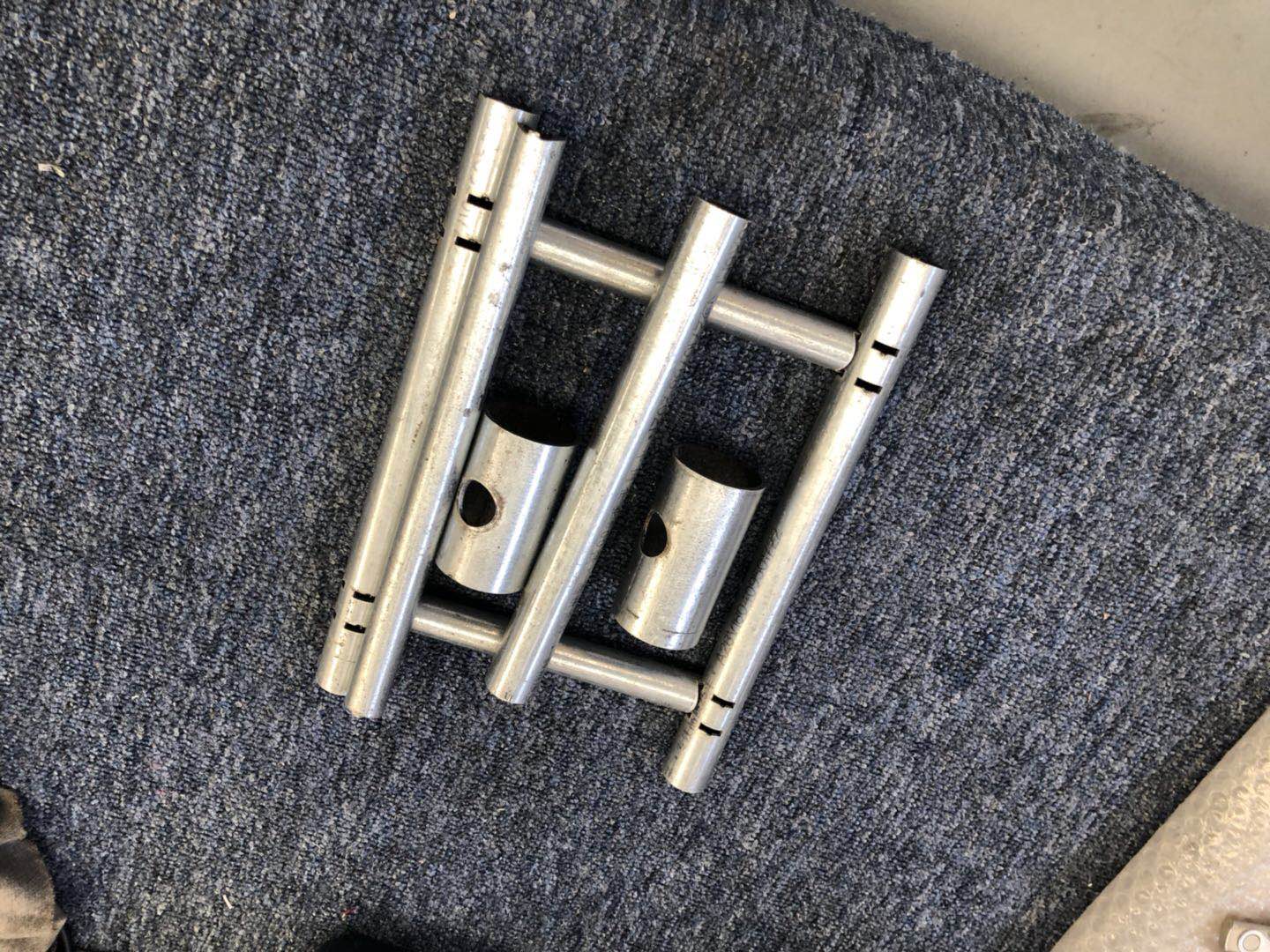

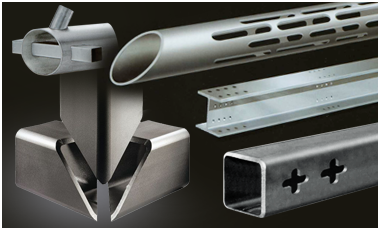

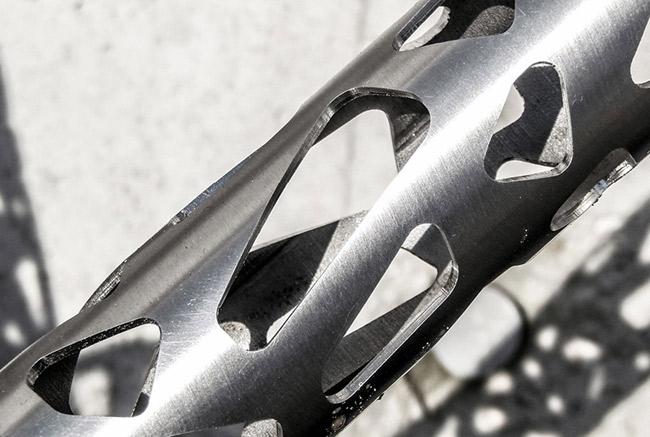

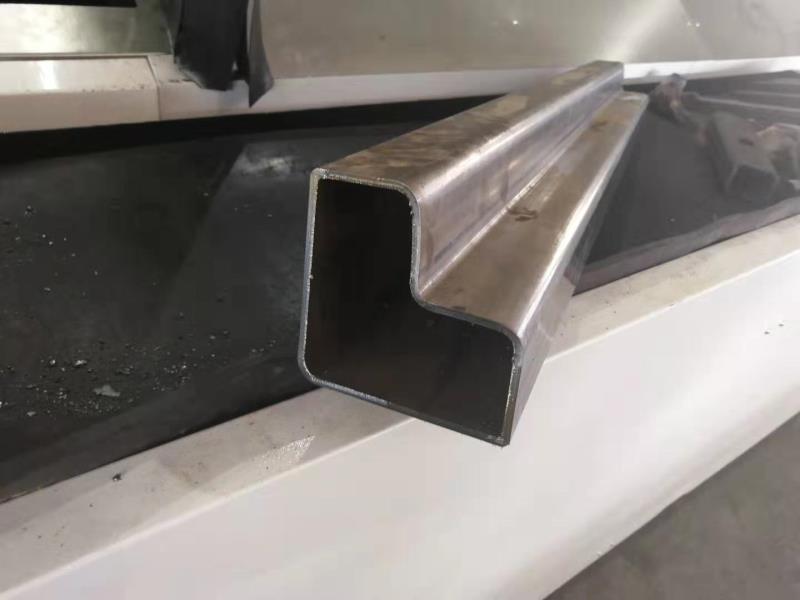

- - Cut a variety of tubes, such as a round tube, square tube, triangle tube, rectangular tube, oval tube, and waist round tube.

- - IPG laser resonator
  - Germany PRECITEC cutting head: high precision with auto-focus.
  - FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI.

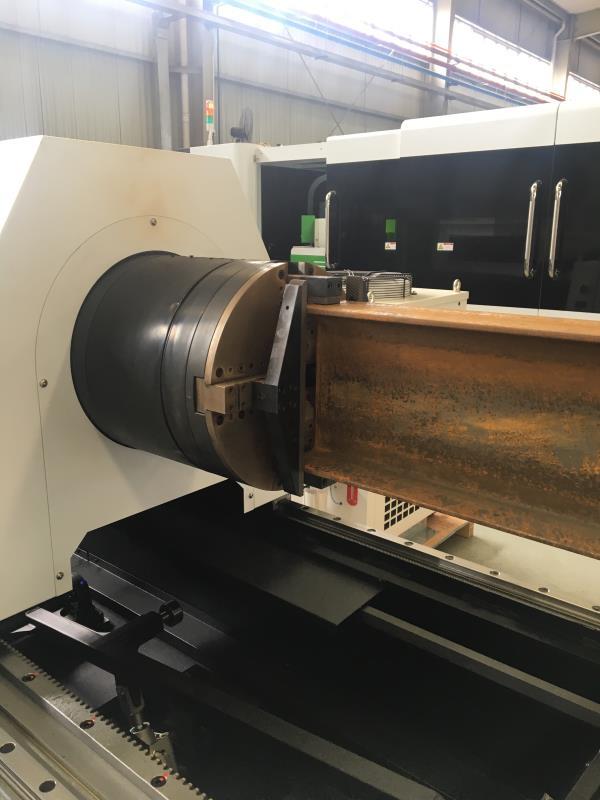

  - Special designed flexible tube support device: Keep the device grip the tube tightly during the tube feeding and rotating.

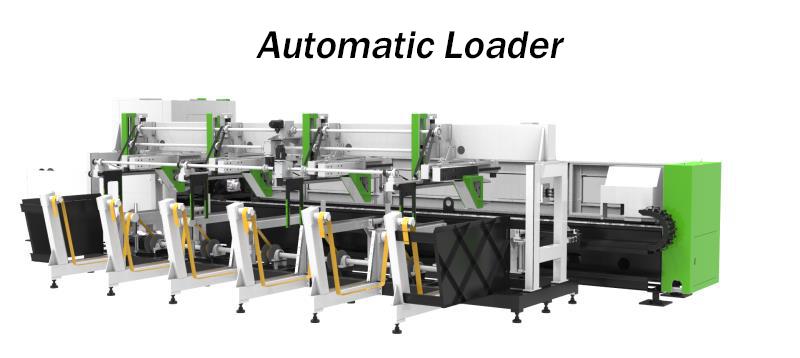

  - Automatically loading by whole package tube: Reduce staff number and improve the processing efficiency.
  - Tube type auto-recognition system: Different types tubes can be mixed loading together.
  - High precision & high-pressure servo-control valve: Precisely control the cutting gas and pneumatic chuck.
  - Linear positioning speed 100 m/min; rotation positioning speed 120 m/min.

________________________________________________________________

TECHNICAL SPECIFICATION

Tube range (length)	244″ (6200 mm)
Tube diameter	Standard: 0.78″- 8.66″ (20- 220 mm) Optional: 0.78″- 12.60″ (20- 320 mm)
X-axis	246″ (6250 mm)
Y-axis	7.87″ (200 mm)
A, B-axis	Infinite Rotation
Z-axis	6.30″ (160 mm)
X, Y-axis positioning accuracy	±0.03 mm/1000 mm
X, Y-axis re-positioning accuracy	±0.05 mm
A, B-axis positioning accuracy	±30″
A, B-axis re-positioning accuracy	±10″
X, Y-axis max positioning speed	100 m/min
Max positioning speed	100 rpm
Laser resonator	IPG 2 KW (Germany Brand)
Optional laser wattage	IPG 1 KW/ 1.5 KW/ 3 KW/ 4 KW (Ask for price)
Laser head	PRECITEC (Germany Brand)
Machine Weight	16534 lbs (7500 kg)
Dimensions (L x W x H)	472″x 169″ x 110″ (12000 x 4300 x 2800 mm)

_________________________________________________________________

CUTTING CAPABILITIES

SKU: N/A Categories: Bescutter, Bescutter Fiber Lasers, Bescutter Fiber Lasers - Metal Pipe

Power	IPG 2KW, IPG 3KW
Automatic Loader	YES, NO
