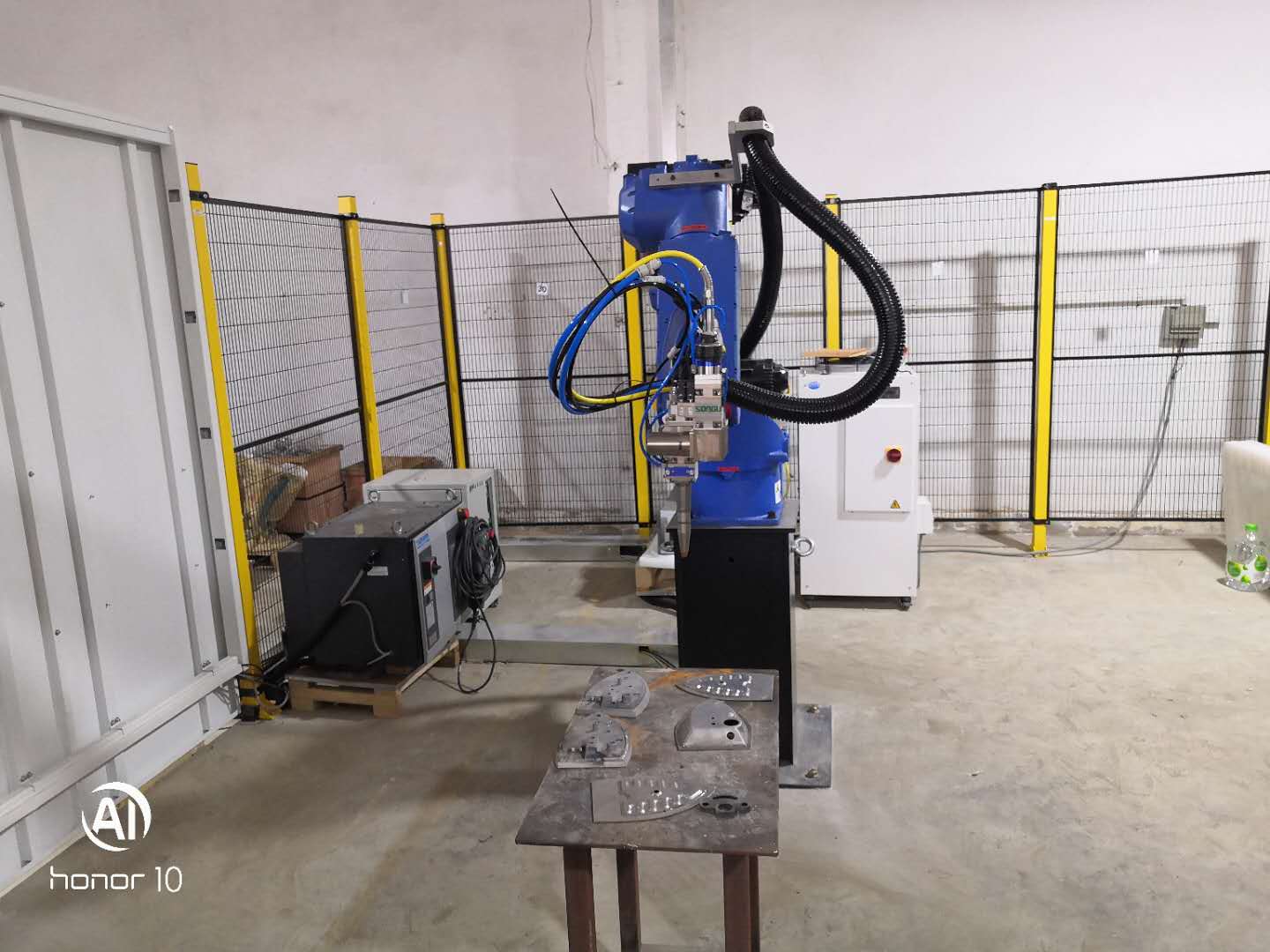

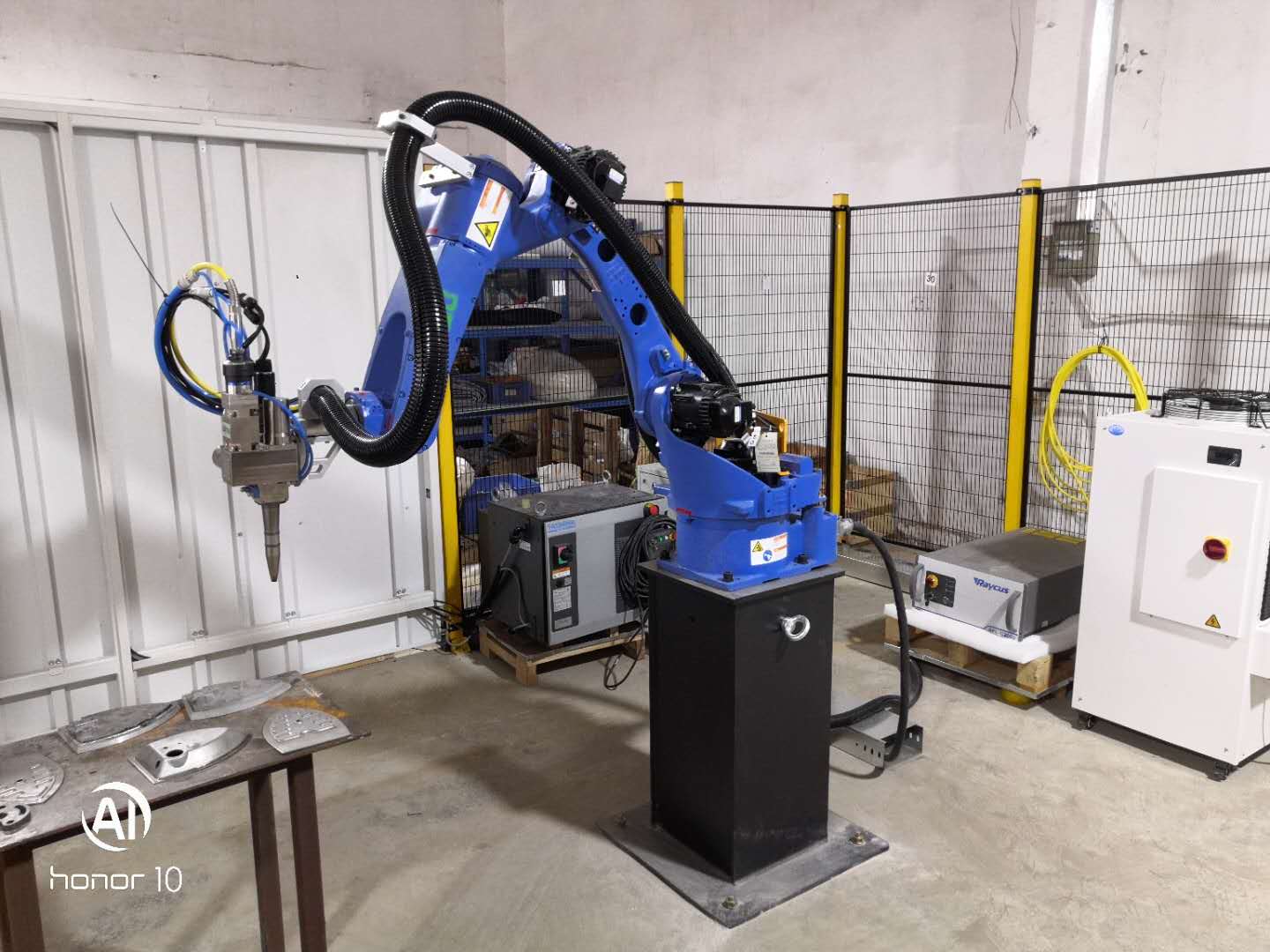

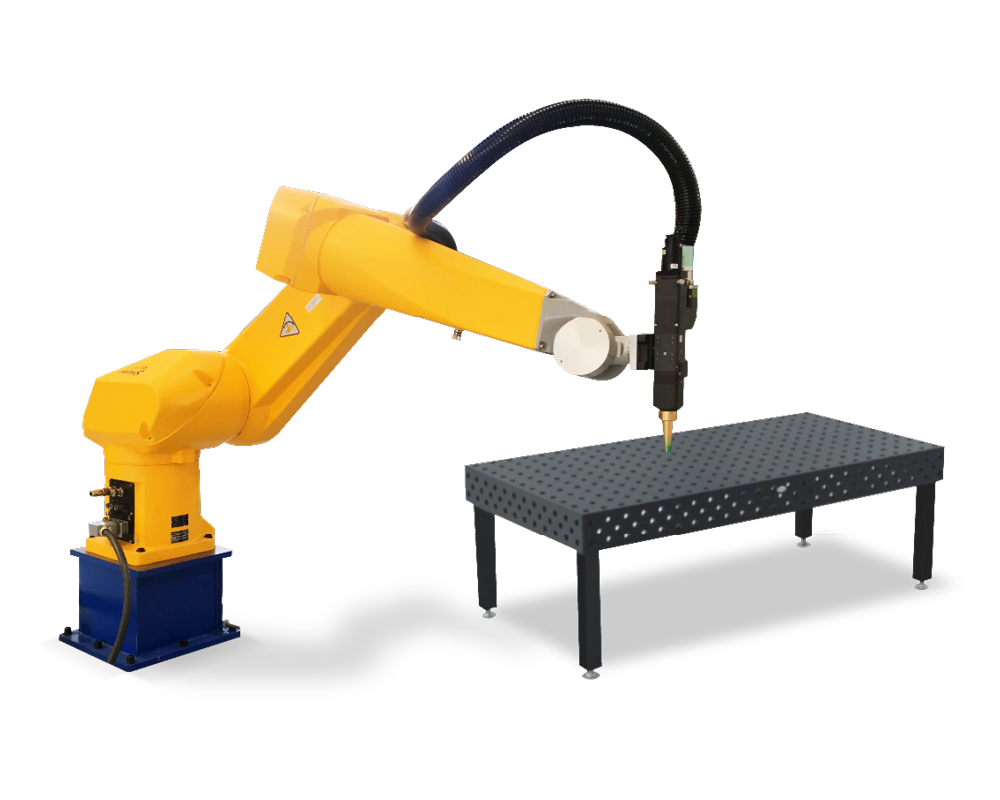

BesCutter HyRobot 3D Robot Fiber Laser Metal Welding Machine


$240,000.00$255,000.00

Apply Today Through CIT Bank!

INTRODUCTION

  • Ground installation.
  • High precision industrial robot: options of Swiss Staubli, Japan FANUC, Japan YASKAWA, etc, equipped with a mature robot control system, high accuracy, stability, and reliability.
  • IPG laser resonator 2KW~6KW.
  • Raytools laser cutting head, PRECITEC head is optional.
  • Safety protection: safety interlock design, guard fence available.
  • Remote diagnosis.



_________________________________________________________________

MACHINE VIDEO





Technical Parameter

Robot Staubli
Output laser power IPG1000W~IPG6000W
Arm span 2010mm
Laser fiber 100~400μm
Modulation speed 5KHz
Laser mode CW/QCW
Robot weight 252kg
Installation mode Top/Ground
Laser wavelength 1070~1080nm
Reposition accuracy ±0.05mm
Rated load 14kg
Welding head Raytools (Precitec optional)
Overall dimension 7000×4000×3200





Power

1500 W, 2000 W
