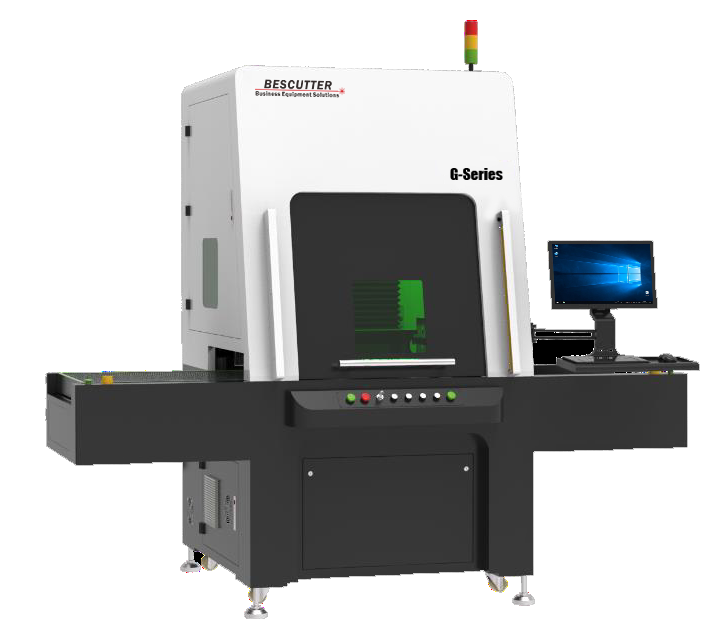

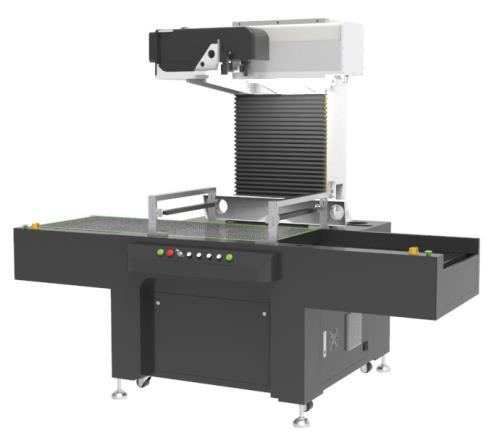

BesCutter 3-axis Laser Head Scanner 180-250W Galvo CO2 Laser Marking Machine Metal Tube Fully Enclosed
Price range: $80,000.00 through $92,500.00
Main Features
- 180W/250W Germany Rofin RF Metal Tube
- 3D Laser Head Scanner: Max area 800mm x 800mmÂ
- High Precision and Unparalleled Speed compared to a gantry laser system
- The fully enclosed design meets the demand of the TUV, CE certificate.
- Up and down exhausting systems can suck the dust and exhaust gas to provide a safe and clean environment.
- Electric lifting meter for autofocus.
- Applications: acrylics, plastics, wood, glass, ceramics, paper, leathers, stone, and more
- Two Red Dots for easy focal length adjustment
- Visible Red Laser for part alignment and pre-mark preview
- Foot Petal included for production job runs
- FREEÂ operating software
- FREEÂ one laser protection goggle
- No moving parts, no consumables, maintenance-free
- One year warranty on all parts and remote service
Technology Specifications
| Laser Generator: | 180W/250W Rofin USA Metal RF Tube |
| Laser Source Life Time: | 20,000 + hours |
| Working Area: | 300x300mm- 800 x 800mm |
| Laser Beam Quality: | <1.2M2 |
| Marking Speed: | 7000 mm/s |
| Laser Wavelength: | 10.64 um |
| Minimum Line Width: | 0.2 mm |
| Minimum Character: | 2 mm |
| Power Supply: | 110V / 60Hz |
| Cooling: | Water Chiller is included |
| Weight: | 17,650 lbs |
| Dimensions: | 67″L x 55″W x 64″H |
| Power | 180W Rofin, 250W Rofin |
|---|---|
| Worktable | Fixed, Sliding |
| CCD Visual | NO, YES |
