Main Features
-

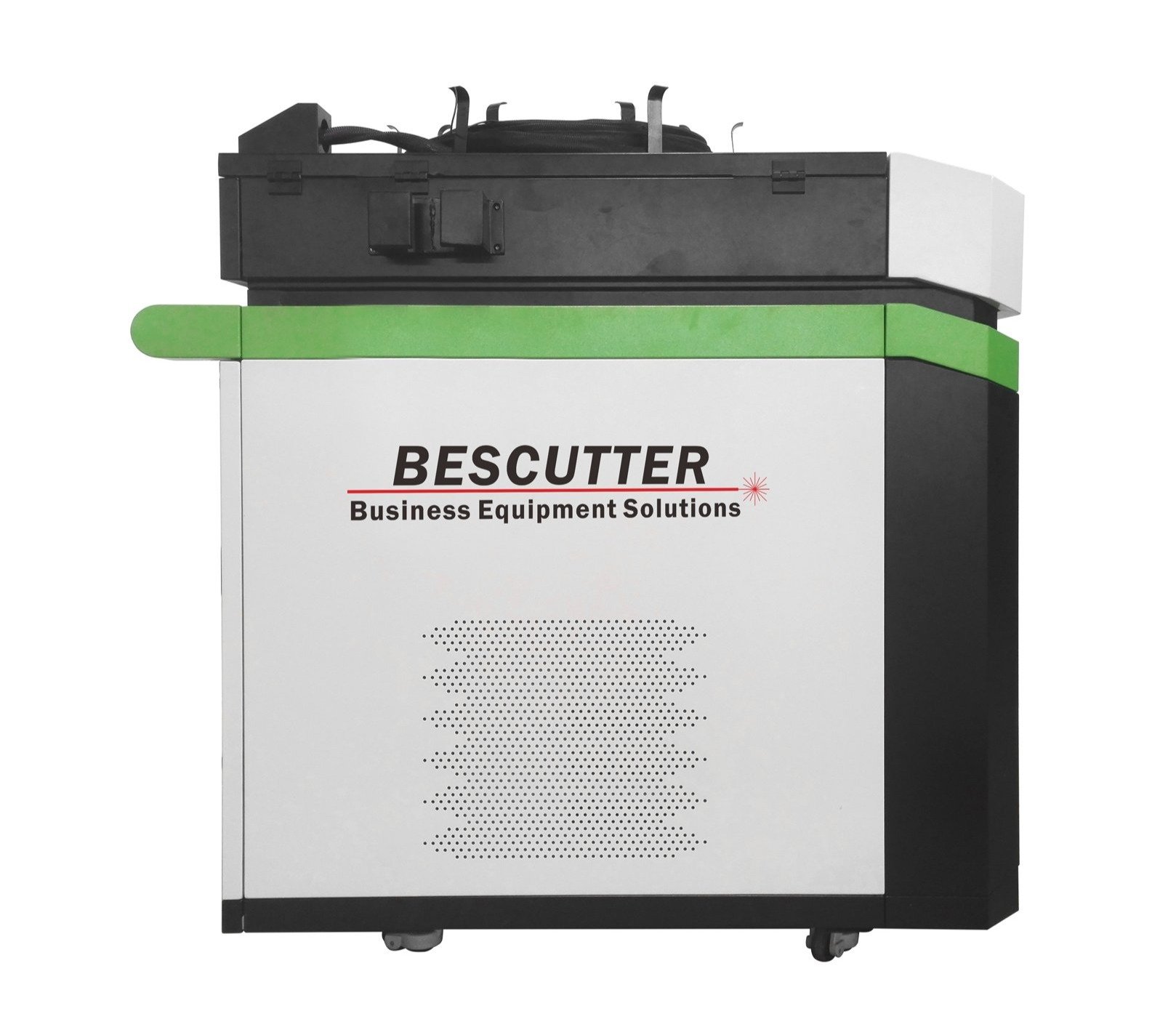

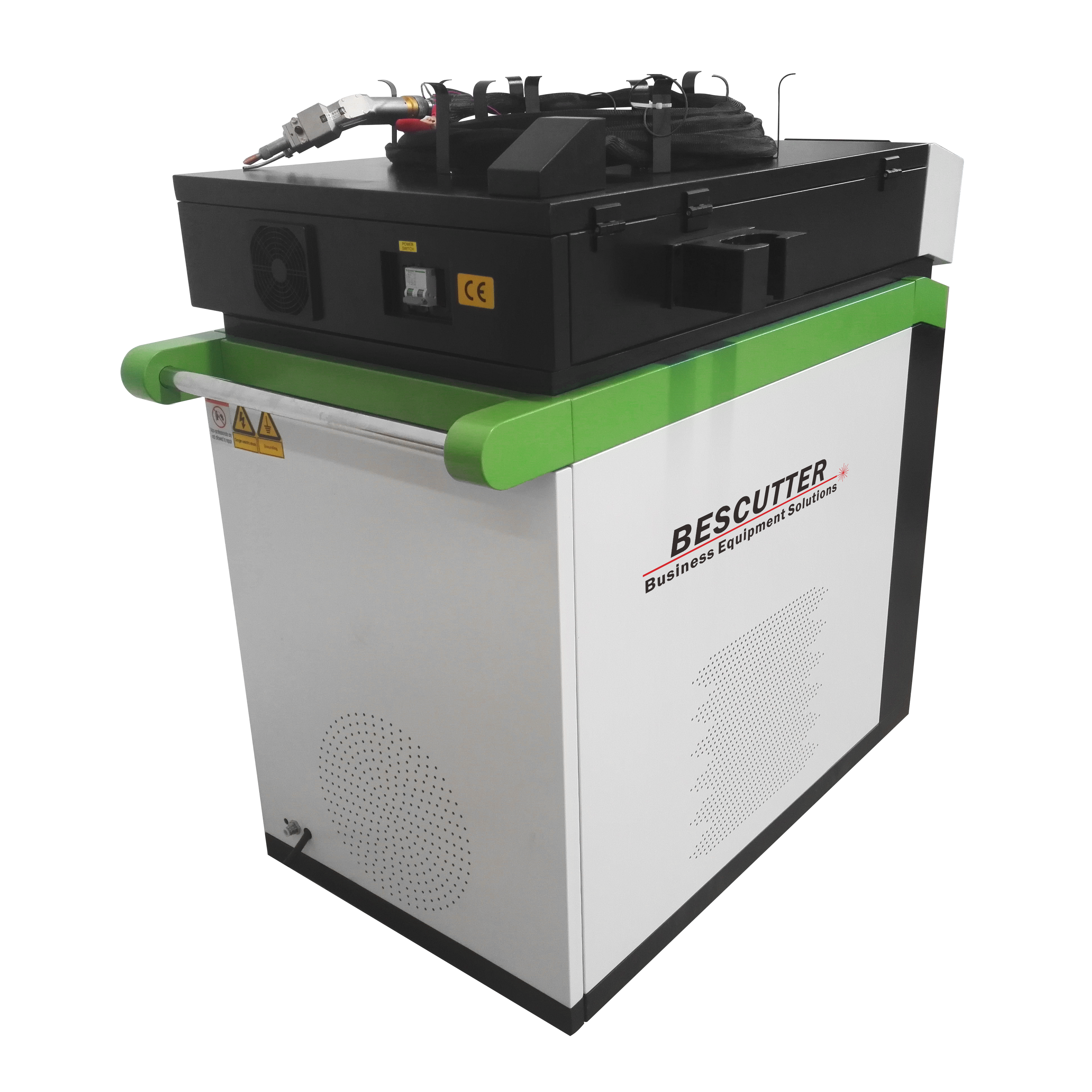

- Handheld Welder
- Simple Operation
- High Efficiency & Fast Welding Speed Very flexible welding, 5-10 times faster than traditional welding.
- Less Consumable Reducing subsequent grinding processes, saving time and costs
- Portable and Movable Can achieve tailoring, fillet welding, lap welding, etc.
- High Reliability Can be continuously and stably working in 24 hours.

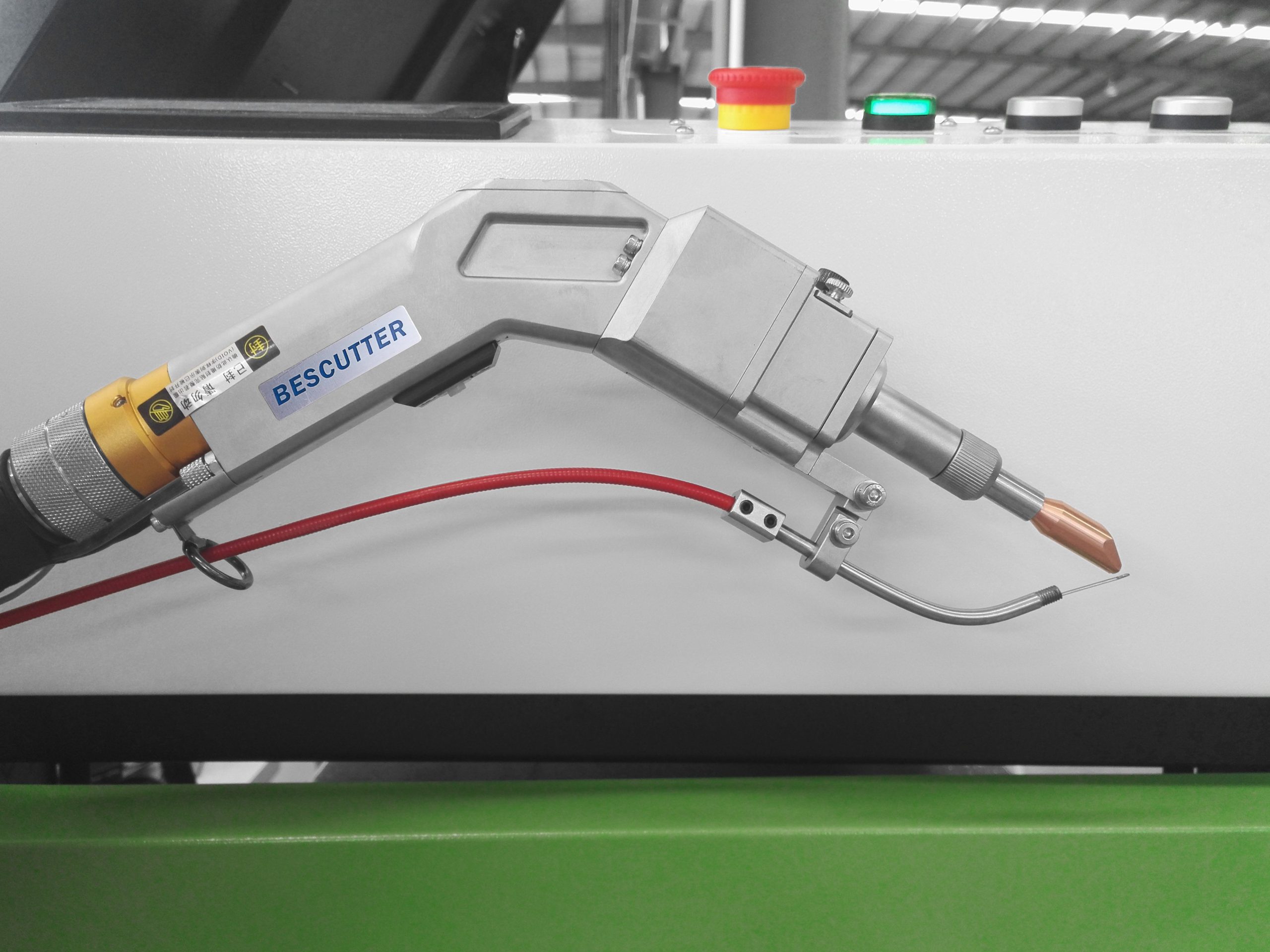

- Wobble Welding joint The self-developed wobble welding head compensates for the small disadvantage of the laser welding spot, expands the tolerance range of the machined parts and the weld width, and obtains better weld formation
- Two Years Warranty and Remote Service
Technology Specifications
| Laser Wattage | 1 KW Max | ||||
| Working Mode | Continuous/adjustable | ||||
| Wavelength | 1080 nm | ||||
| Fiber Optics Length | standard 15 m (49 ft), up to 30 m (98 ft) | ||||
| Welding Speed Range | 0-120 mm/s | ||||
| Welding Thickness Range | 0.5-4 mm | ||||
| Weld Seam Requirements | ≤0.2 mm | ||||
| Processing Board | Aluminum, Carbon Steel, Stainless Steel, Galvanized Sheet, etc. | ||||
| Cooling Mode | Water Cooling with Industrial Water Chiller | ||||
| Air Assist | Nitrogen | ||||
| Dimensions | 51″ x 26″ x 43″ (L x W x H) | ||||
| Weight | 330 lbs | ||||
| Voltage | 220 V Single Phase | ||||
| Working Temperature | 59 – 95 f | ||||
| Working Humidity | ＜70%( No condensation) | ||||
Applications
Welding in thin stainless sheets, iron sheets, galvanized sheets, and other metal materials can perfectly replace the traditional argon arc welding, electric welding, and other processes. Widely used in cabinet kitchen, staircase elevator, rack, oven, stainless steel door, and window guardrail, distribution box, stainless steel household, metal sheet metal, and other industries complex and irregular welding process.
