Bescutter, Bescutter C02 Lasers, Bescutter CO2 Laser Cutter and Engraver
ALL SYSTEM INCLUDED BESCUTTER VERSA 52″X36″ CO2 LASER CUTTER & ENGRAVER 150W | OPTIONAL CCD CAMERA | STOCK AVAILABLE | FAST DELIVERY
Price range: $10,950.00 through $12,950.00
TECH SPECIFICATIONS:
Full List of Specifications (PDF)
| Laser Power: | 150W (180W Opcional) |
| Laser Tube Type: | CO2 laser tube, 10.6 µm Wavelength (ECO2) |
| Laser Tube LifeTime: | 10000 hours |
| Power Supply: | AC 110V (±10%) 60HZ |
| Working Area: | 52″ x 36″ ( 1300 X 900 mm ) |
| Working Platform: | Knife-blade and Honeycomb Table |
| Z-Axis Displacement: | ±11in (±300 mm) |
| Max Moving Speed: | 39 in/s |

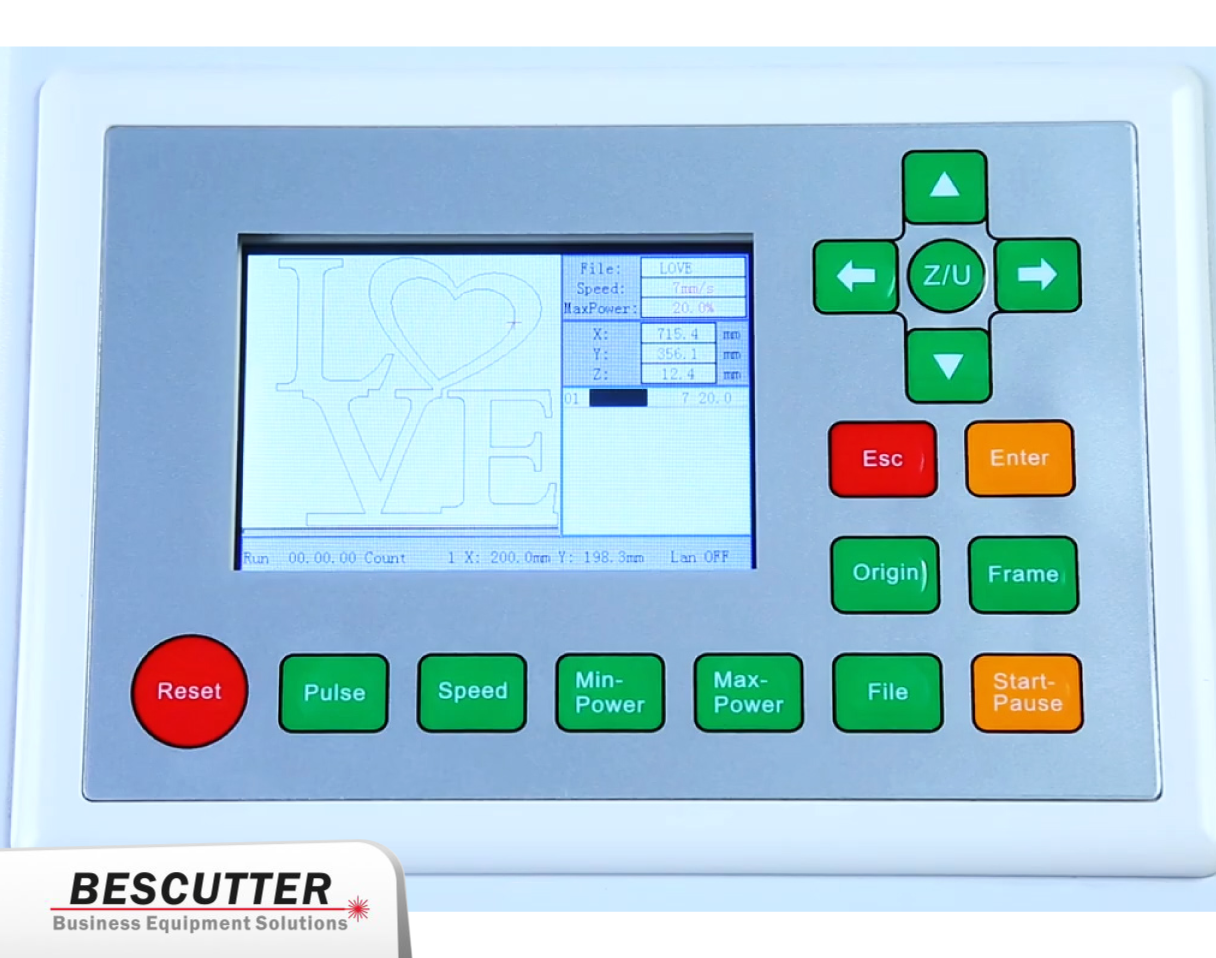

| Operation Mode: | Control Panel |
| Gross Weight: | 1300 lbs (Â 589 Kg ) |
| Class: | Class 4 Laser |
| Pass-Through Door: | Back / Front |
| Machine Dimensions: | 76″ x 57″ x 44″ (1930 x 1440 x 1120 mm) |
MACHINE CONFIGURATION:
| Controlling System: | RuiDa RDC6442 |
| Software: | RDWorks / LightBurn® (optional) |
| Motion Transmission System: | Stepper Motor/Belts |
| Connection Method: | USB Memory / Data Cable |
| Lense: | 2.5″ focal lens |
| Technical Support Service: | Zoho Desk Technical Service (Tickets Support) |
| Warranty: | One Year (exclude lens and mirrors) |
| Certification: | CE, ISO |
| Upgrade Optional: | CCD Camera (Contour cut with registration mark) and Four-wheel rim drive rotary attachment |
AUXILIARY EQUIPMENT:
| Extraction system: | Exhaust fan 1HP / 750W |
| Assistant air: | Air Compressor Hailea 110V |
| Water chiller | S&A CW 5200 industrial refrigerated chiller |
Accessories Available for this model
Rotary Attachments for Cylindrical Items
CO2 LASER REVIEW & WALKTROUGHT VIDEO

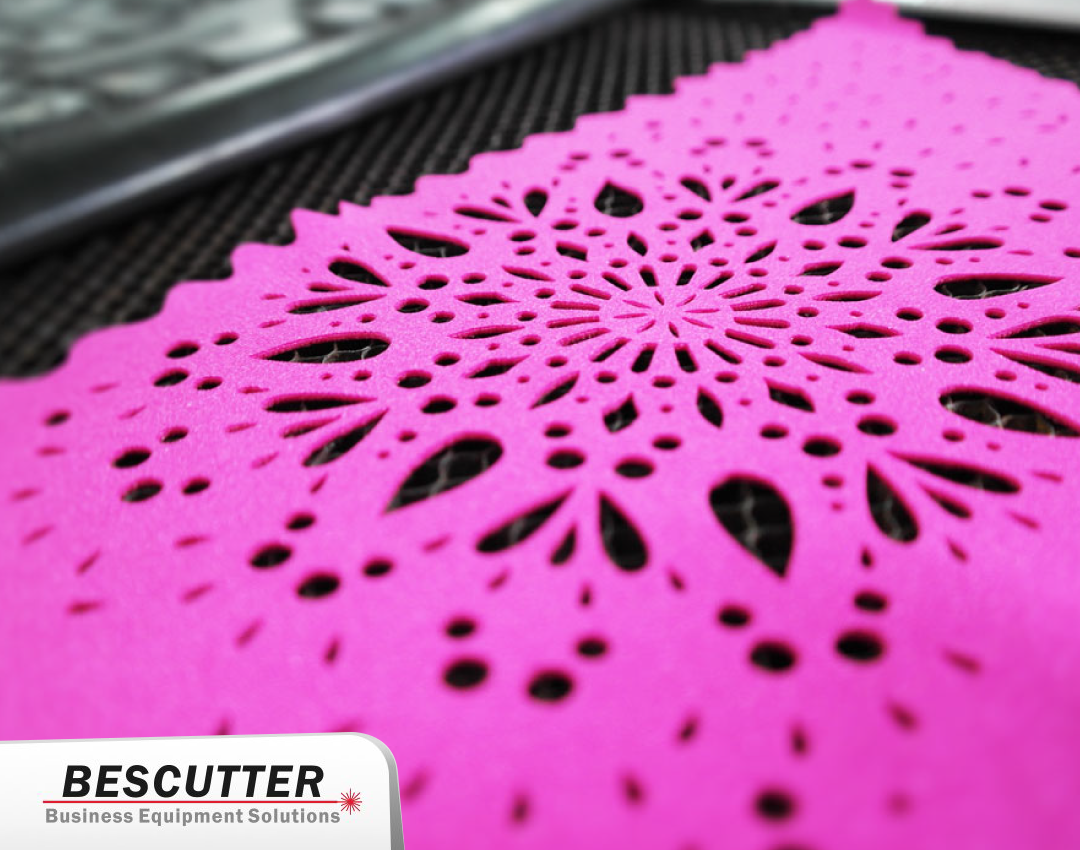

Materials can be cut or engraved with our CO2 Laser Systems
CO2 130-150W Cutting & Engraving Suggested Parameters (PDF)
Application Videos
1/4″ Acrylic Cutting and Engraving
1/4″ Wood Cutting
DIY Acrylic Lobster
We Love Acrylic & Laser
| Power | 150W STANDARD, CDC CAMERA UPGRADE |
|---|
