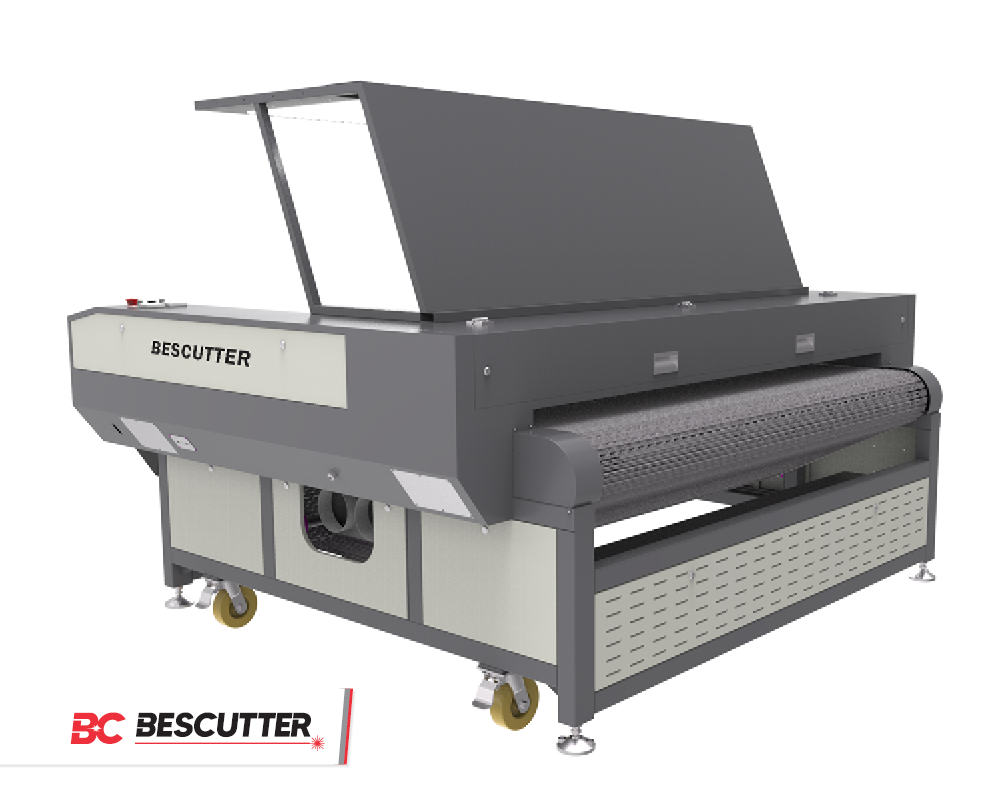

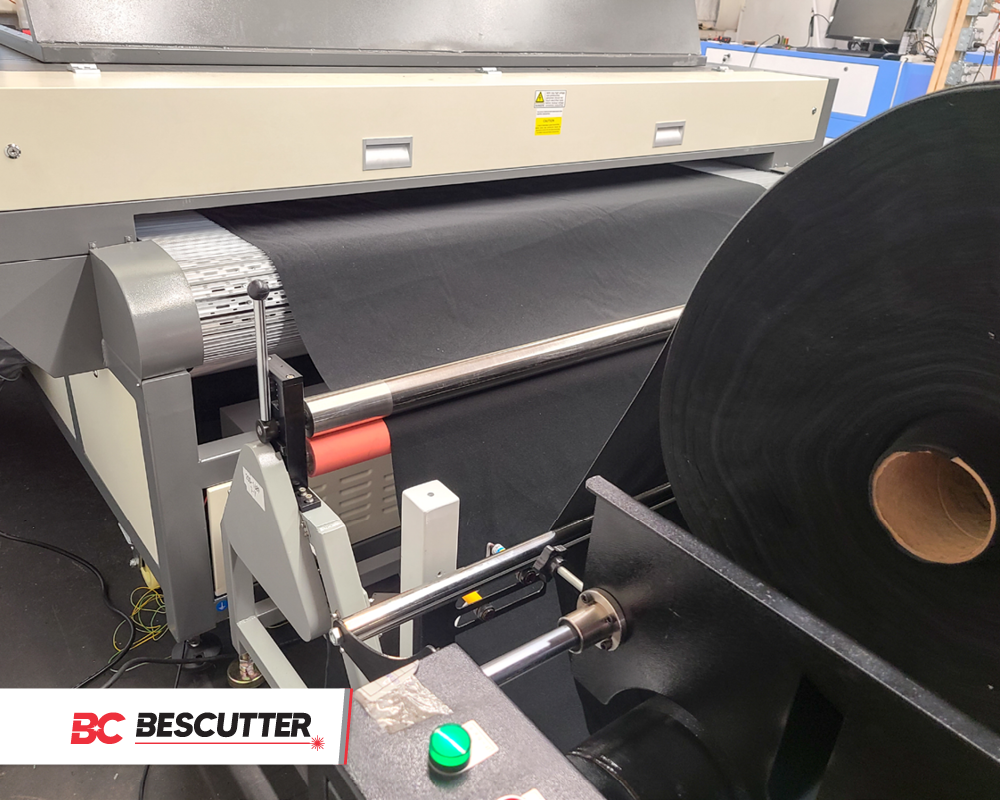

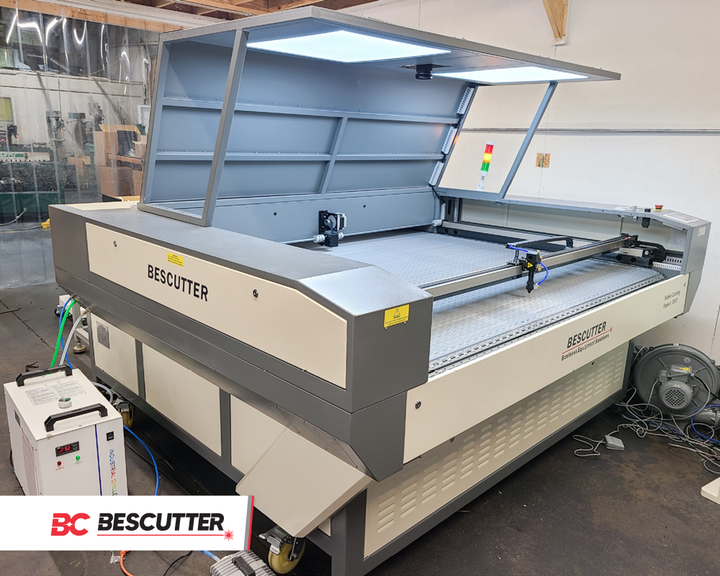

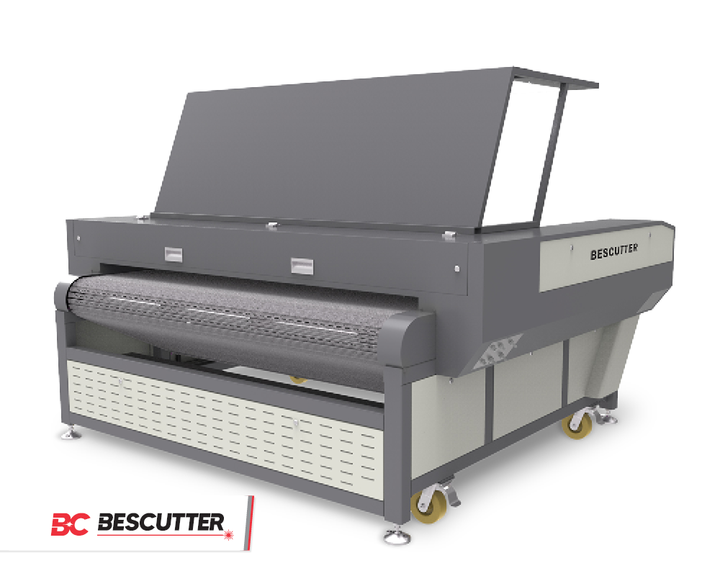

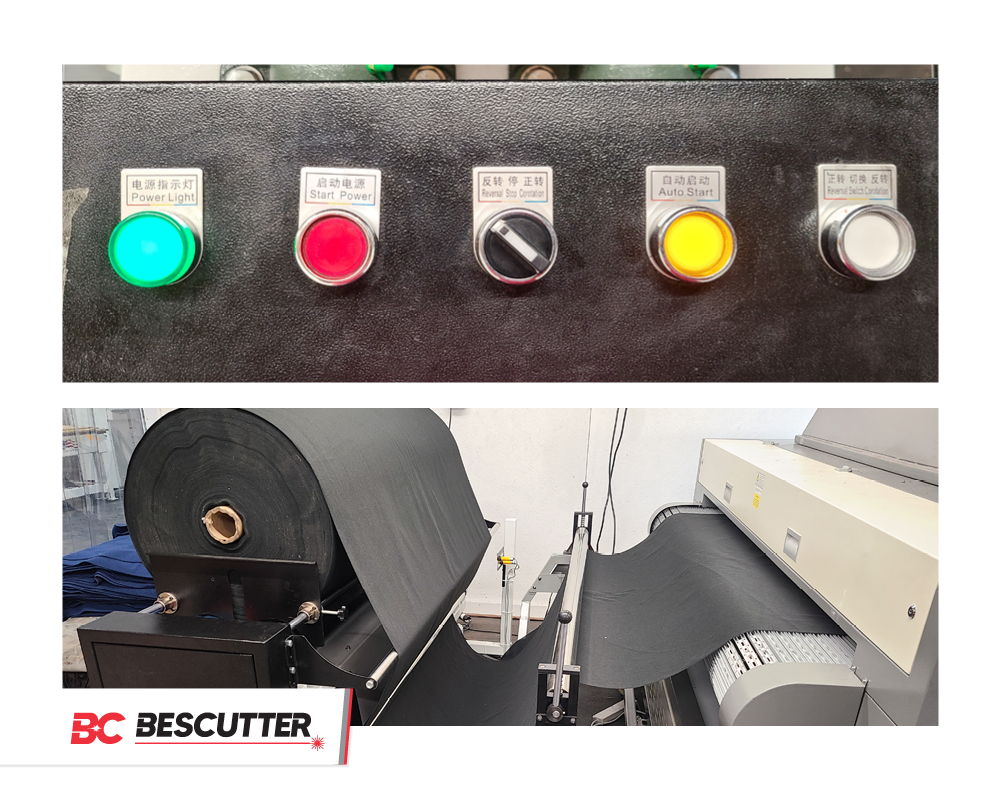

ALL SYSTEM INCLUDED BESCUTTER FABRIC CUTTING EXPERT 71”X39” CO2 LASER CUTTER & ENGRAVER UP TO 150W WITH CAMERA POSITIONING, CONVEYOR BELT AND EDGE AUTO-DETECTING FEEDER
Price range: $23,950.00 through $28,450.00
Features
| High-quality Canon digital camera: Achieve the full format single shot and image recognition, more efficiency of auto-positioning. |
| Full format image automatic recognition and generate contour template. |
| Camera calibration offset compensation: Correct the overall offset after the device has been running for a period of time to ensure precise cutting. |
| Professional suction bellow design: Effectively absorb the materials & remove the dust. |

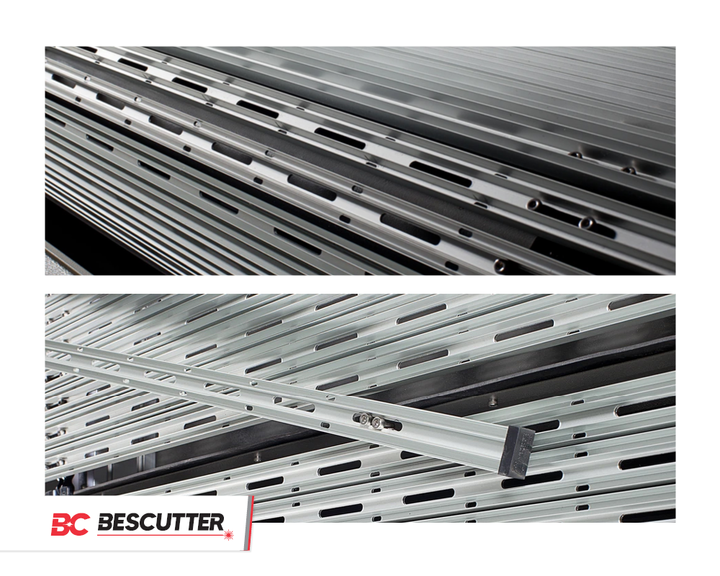

| E-shaped blade mesh conveyor: Made by aviation aluminum, lightweight & stable structure. The conveyor can be replaced one by one, easy cleaning & long service life. |

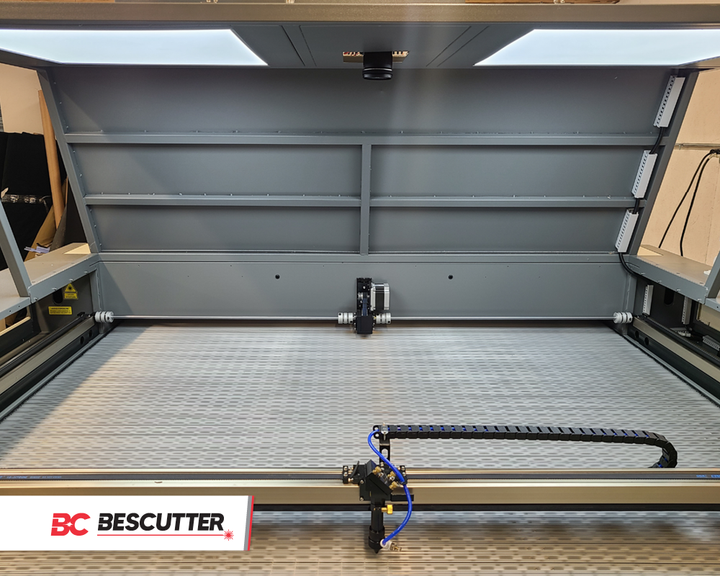

| Monorail Cutting System: Reduce the wear between the pulley and the guide rail, achieving high efficiency & high precision, and durability. |
TECH SPECIFICATIONS
| Laser Power: | 100W ( 130W, 150W Optional) |
| Laser Tube Type: | CO2 Laser Tube, 10.6 µm Wavelength (Optional 2 Laser Tube 100W, 130W, 150W) |
| Laser Tube Lifetime: | 10000 hours |
| Working Area: | 71″ x 39″ (1800 mm x 900 mm) |
| Max Moving Speed: | 0-15;74 in/s |
| Z-Axis Displacement: | 0.003 in (±0.1 mm) |
| Drive System | Inner Rail |
| Transmission: | Belt/ Stepper Motor |
| Operation Mode: | Control Panel and Software, Advanced Camera |
| Dimensions: | 85″ x 97″ x 85″ ( 2160 mm x 2463 mm x 2160 ) |
| Machine Weight: | 2050 LB ( 92.986 Kg ) |
MACHINE CONFIGURATION

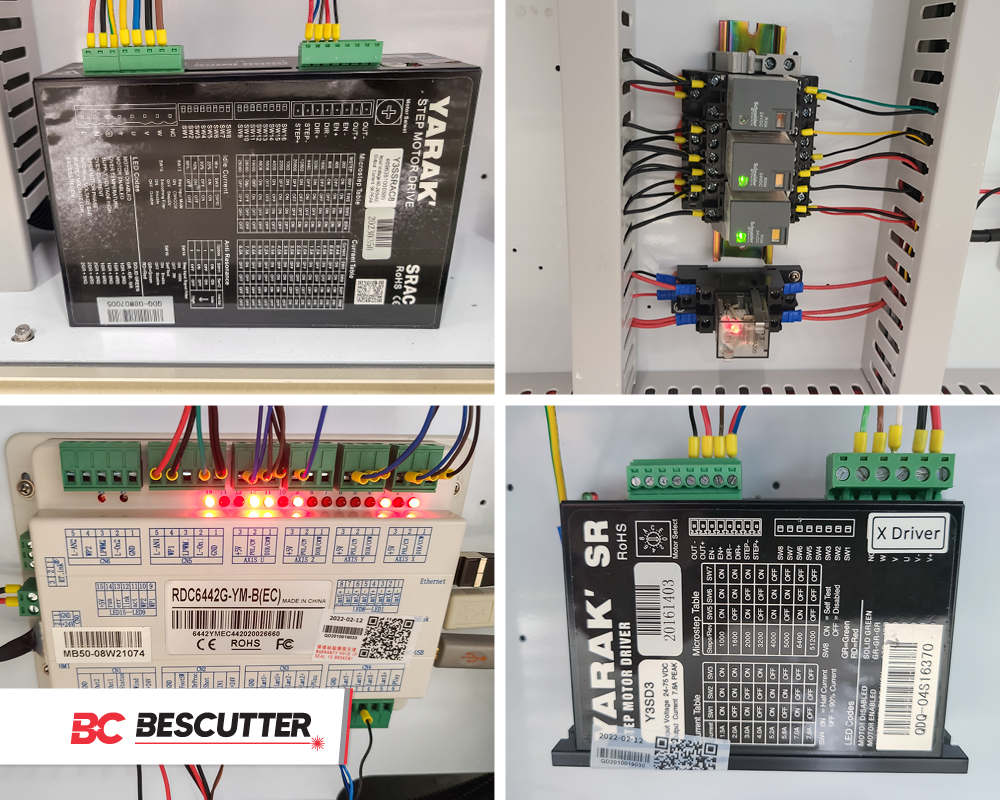

| Controlling System: | Ruida RD |
| Software: | Smart Vision |
| Transmission System: | 3 Phases Stepper Motor |
| Connection Method: | USB Memory/ USB Cable/ Ethernet |
| Focus Lens: | 2.0″ ( 50.8 mm ) |
| Reflecting Mirrors: | 3 sets of Φ0.98″ mm × 1/8 in |
| Support Bitmap Format: | BMP、JPG、GIF、PNG、MNG, ETC |
| Support Vector Graphics Format: | PLT、AI、DXF、DST, ETC |
| Camera: | High-quality Canon Digital Camera |
| Warranty | One year (exclude optics and mirrors) |
| Power Supply: | 220V/60Hz |
AUXILIARY EQUIPMENT
| Extraction system: | Exhaust fan 1HP / 750W (Optional 2 set of Exhaust fan for Double Head Update) |
| Assistant air: | Air compressor 135W (Optional 2 set Air compressor 135W for Double Head Update) |
| Water chiller: | S&A CW 5200 industrial refrigerated chiller |
laser engraving cutting machine for wood – laser engraving cutting machine for acrylic -laser engraving cutting machine for cloth – laser engraving cutting machine for shoes -laser engraving cutting machine for paper – laser engraving cutting machine for glass – laser engraving cutting machine for ad – laser engraving cutting machine for stamp – laser engraving cutting machine for leather – laser engraving cutting machine for wedding card – laser engraving cutting machine for art – laser engraving cutting machine for plexiglass – laser engraving cutting machine for plastic – laser engraving cutting machine for rubber – laser engraving cutting machine for bamboo – laser engraving cutting machine for plywood – laser engraving cutting machine for PVC – laser engraving cutting machine for TPU
| Power | 100W, 130W, 150W |
|---|---|
| Laser Cutting Head | ONE, TWO |

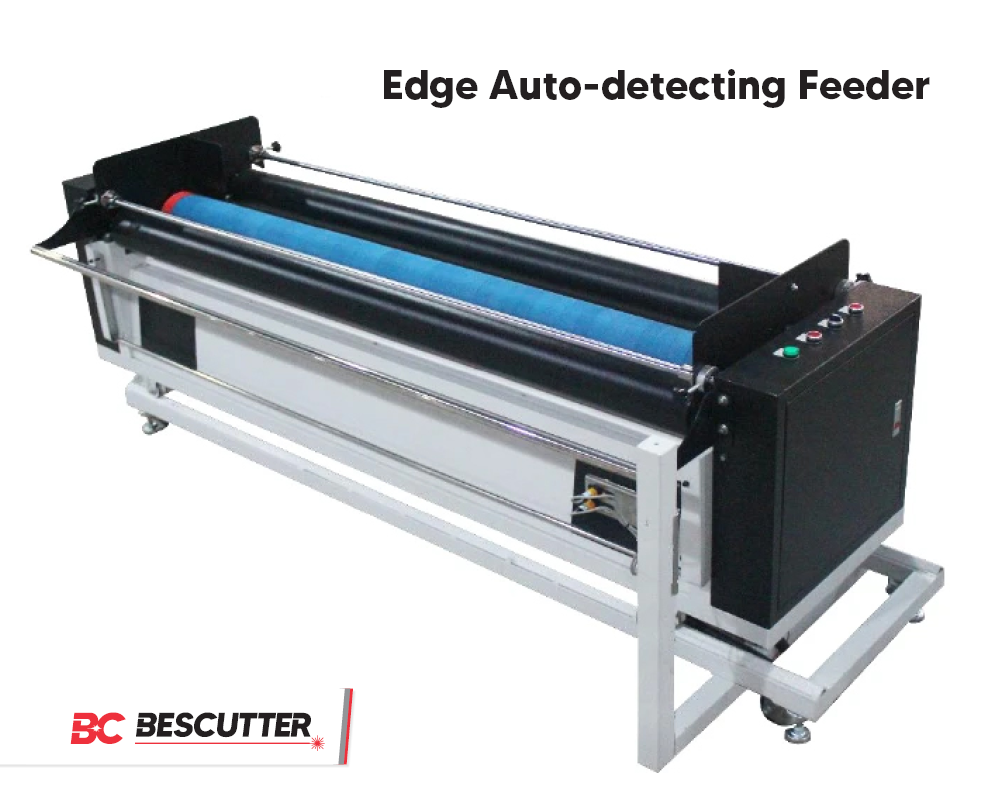

| Edge Auto-detecting Feeder | NO, YES |
