YLP-S12 / S20 – Laser Marking Machine
Features:
-Good stability, high integration and automation design
-Friendly user interface make it easy for user to operate
-High marking precision, high marking speed, wide PRF, changeable Peak Power and adjustable Central -Frequency,smoothness and fineness marking result
-The whole system is small and compact based on all-in-one designation. With air cooling system it has low power consumption
Application:
The YLP-S series is widely used in marking of metals and some non-metal materials, especially designed for the industries strictly requiring the accuracy of the processing depth, smoothness and fineness such as clock and watch industry, jewelry industry.
| Model | YLP-S12/20 |
| Laser output power | 12/20W |
| Beam quality M2 | ＜2 |
| Marking area | 100x100mm |
| Working distance | 182±2mm |
| Min. character size | 0.1 |
| Pulse Repetion | 20KHz＜F＜200KHz |
| Cooling method | Air cooling |
| Power consumption ( | 0.5KW |
| Power supply | 220V |
| Dimensions (LxWxH) | 920x740x1415 |
| weight | 260KG |

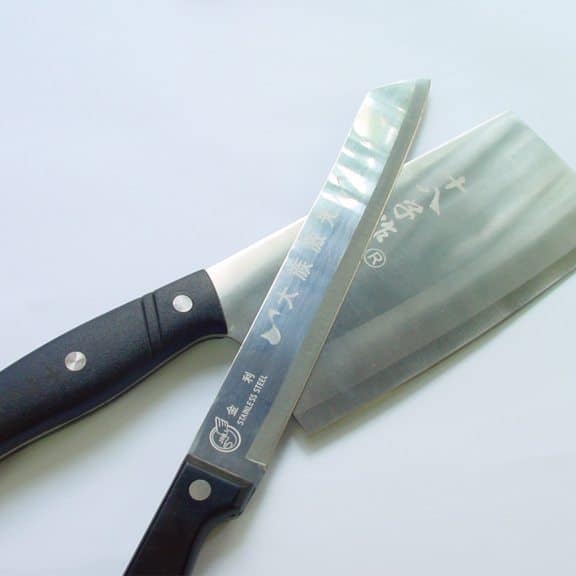

YLP-S12 / S20Â – Marking Samples
[box type=”info” style=”rounded” border=”full”]
More Information:
Laser Experts Inc.
T: Â + 1 312-638-0957
F: Â + 1 847-952-0970
E: Â info@laserexpertsinc.com[/box]
