MARS-10J / 20J / 30J – Laser Marking Machine
Features:
-Good laser beam quality and high reliability
-Higher power conversion rate,overal machine size is quite small
-Simple interface, it uses one key and one button to start machine
-High pulse repetition frequency and marking speed
Application:
Mars-J series is suitable for a variety of materials; it is widely used in both traditional and information technology field, such as metal marking, PCB marking, clock and watch industry, jewelry industry, mould industry etc.
| Model | MARS-10/20/30J |
| Laser output power | 10/20/30 W |
| Beam quality M2 | ＜1.3 |
| Marking area | 100×100 mm |
| Working distance | 182±2 mm |
| Min. character size | 0.5 mm |
| Pulse Repetion | 1＜F＜500 KHz |
| Cooling method | Air cooling |
| Power consumption | 0.5 KW |
| Power supply | 220 V |
| Dimensions (LxWxH) | Control sytem:Â 545x186x430mm Worktable:Â Â Â 589x124x158mm |
| weight | 36 KG |

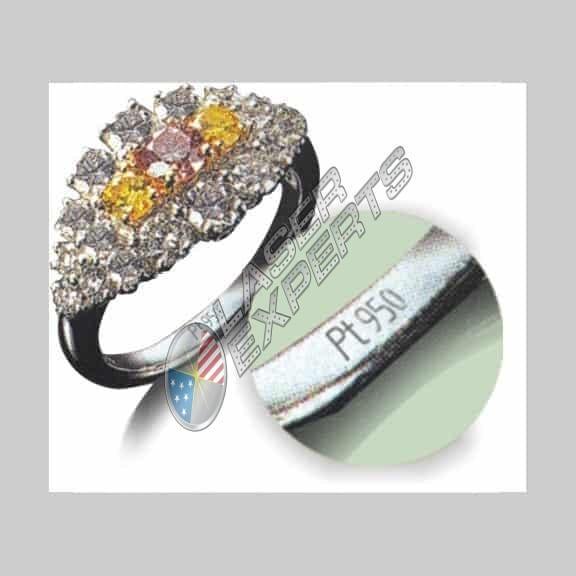

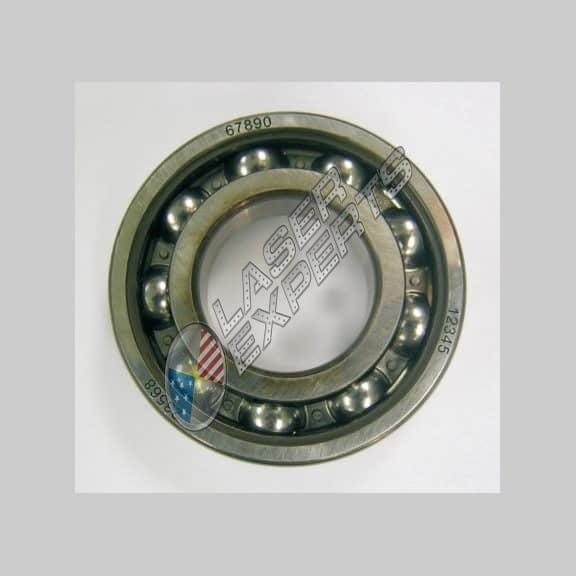

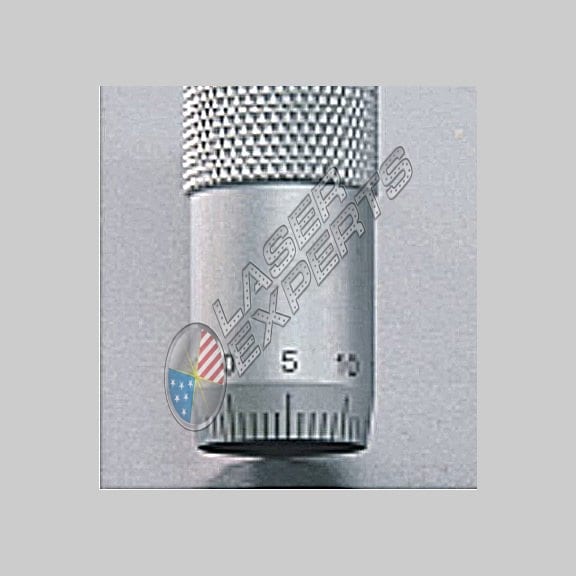

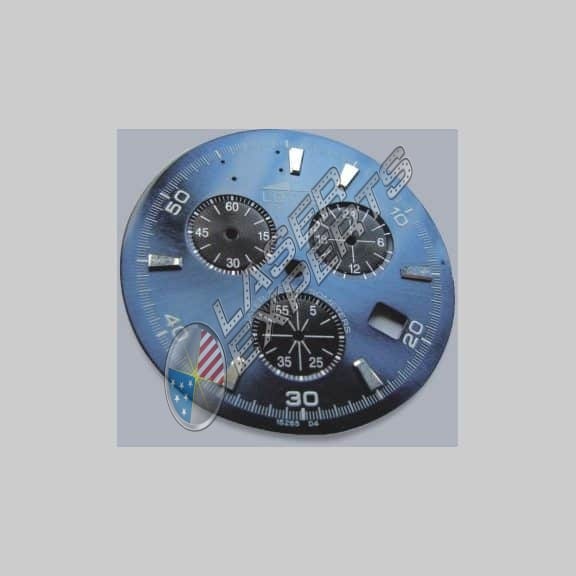

MARS-10J / 20J / 30J – Marking Samples
 Documentation:
MARS J SERIES Â FIBER LASER MARKING SUB ASSEMBLY
SPECIFICATION SHEET
Applications:
Mars-J series laser marking machines the recent R&D result of Han’s Laser. It equipped with fiber laser generator for marking on metals and some non-metal materials. Mar-J series laser marking machine is widely used in following industry areas:
- Consumer electronics
- Automotive component
