Bescutter, Fiber Laser Accessories
Industrial Refrigerated Water Chiller CWFL-3000 For Fiber Laser 3000W
$3,939.00
MAIN FEATURES
- With environmental refrigerant;
- ±5℃ precisely temperature control;
- The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions
- Dual temperature to satisfy different needs of the fiber laser device and the optics;
- With Ion adsorption filtrating and test, functions conform to fiber laser device operating requirements
- Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high / low-temperature alarm;
- Multiple power specifications; CE approval; RoHS approval; REACH approval;
- Optional heater and water filter.
- Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.

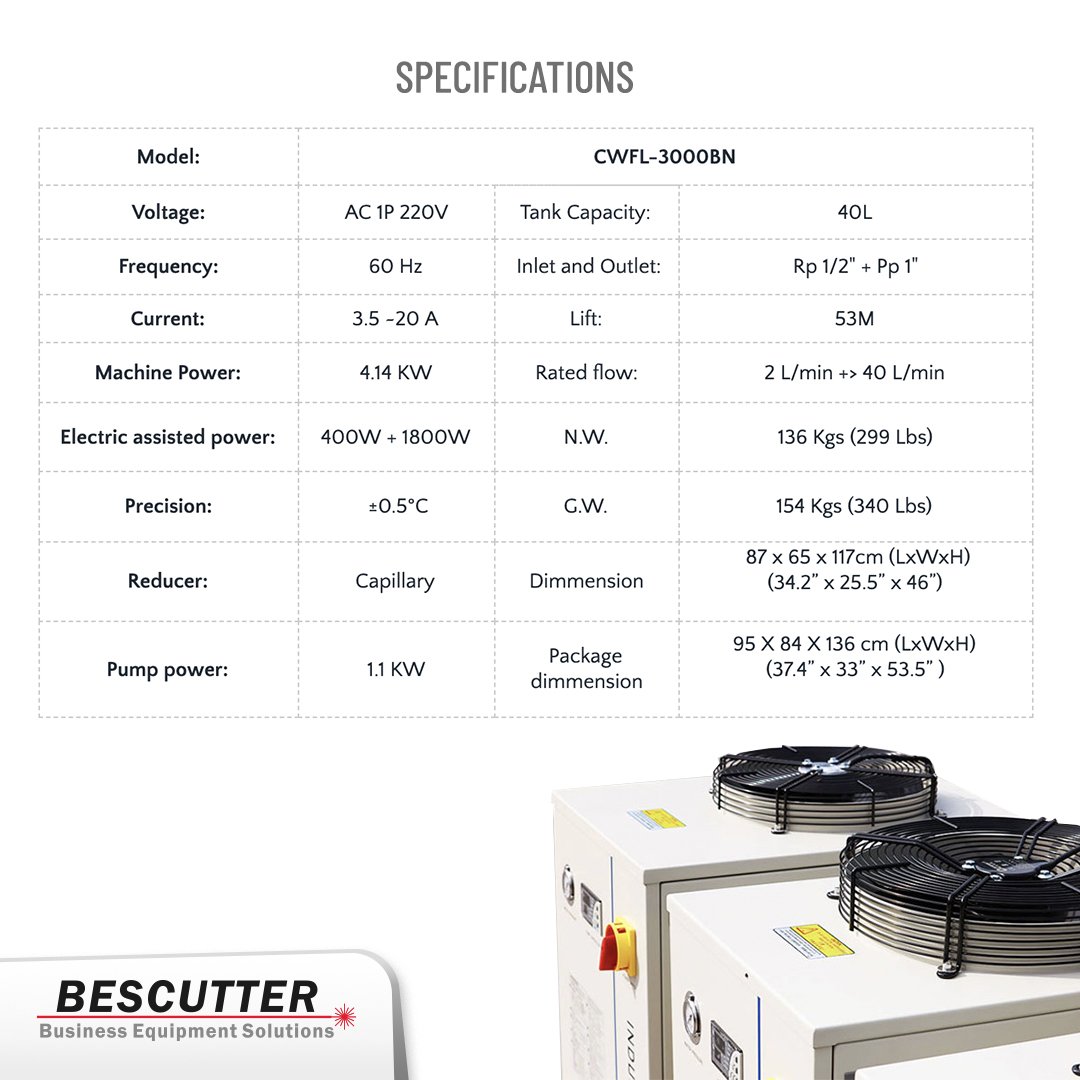

| Model: | CWFL-3000BN | ||
| Voltage: | AC 1P 220V | Tank Capacity: | 40L |
| Frequency: | 60 Hz | Inlet and Outlet: | Rp 1/2″ + Pp 1″ |
| Current: | 3.5 ~20 A | Lift: | 53M |
| Machine Power: | 4.14 KW | Rated flow: | 2 L/min +> 40 L/min |
| Electric assisted power: | 400W + 1800W | N.W. | 136 Kgs (299 Lbs) |
| Precision: | ±0.5°C | G.W. | 154 Kgs (340 Lbs) |
| Reducer: | Capillary | Dimensions | 87 x 65 x 117cm (LxWxH)
(34.2” x 25.5” x 46”) |
| Pump power: | 1.1 KW | Package dimmension | 95 X 84 X 136 cm (LxWxH)
(37.4” x 33” x 53.5” ) |
