CS2513 – Laser Cutting Machine
Features：
-Can be customized cutting solution
With Hans cutting V6.3.0 software
-CS2513 adopted imported fiber laser generator
-Open structure, easy to loader and unloader materials
Application：
CS2513 is widely used in cutting of carbon steel, mild steel, stainless steel, copper, aluminum and alloy etc.
| Model | Â | CS2513-HLR-500 |
| Distant | Â X axis | Â 2500mm |
| Â Y axis | Â 1300mm | |
| Accuracy | Positioning accuracy |  ±0.05mm |
| Positioning repetition accuracy |  ±0.02mm | |
| Workpiece cutting accuracy |  ±0.1mm | |
| Laser type | Imported Fiber / YAG | |
| Laser Power | 500W | |
| Power consumption | YAG:22KW / Fiber:10KW | |
| Dimension (LxWxH ) | 3980x2350x1450mm | |
| Weight | 2.5T | |
| Gas pressure | 0.7-1.2MPa | |
| Working enviorment | Temperature | 15-30℃ |
| Â Wet | 40-75ï¼… | |
| Â Power supply | 380V/60A | |

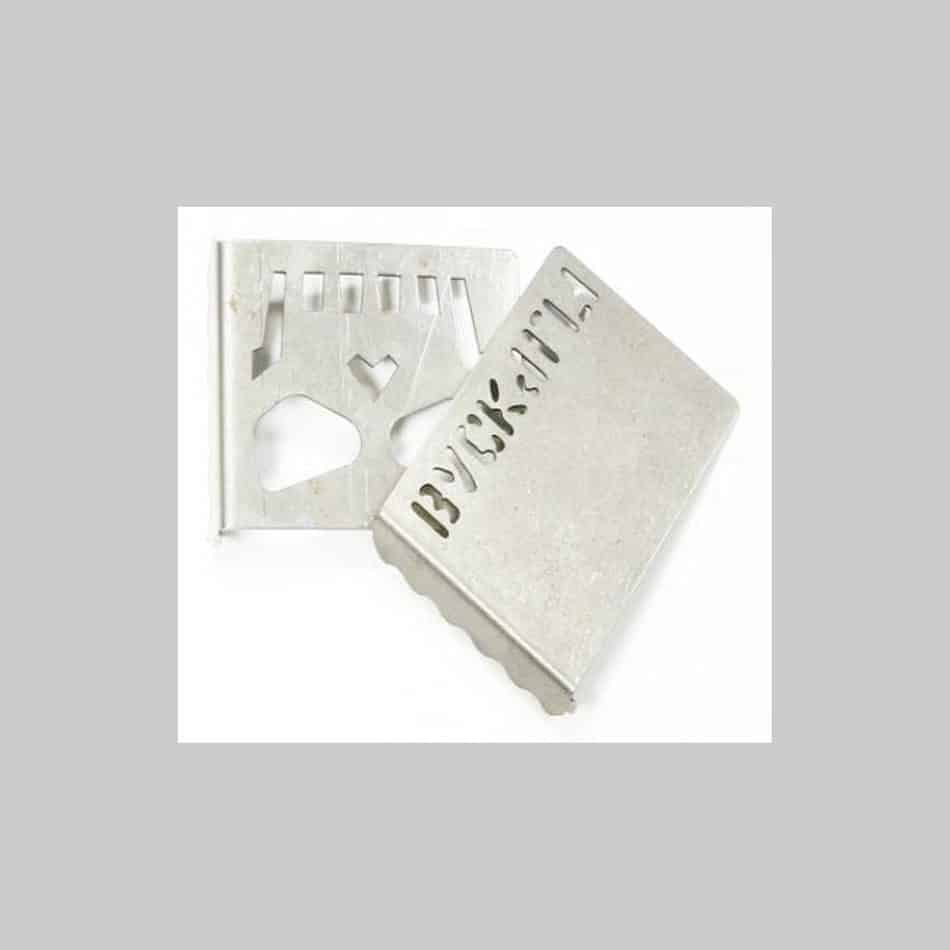

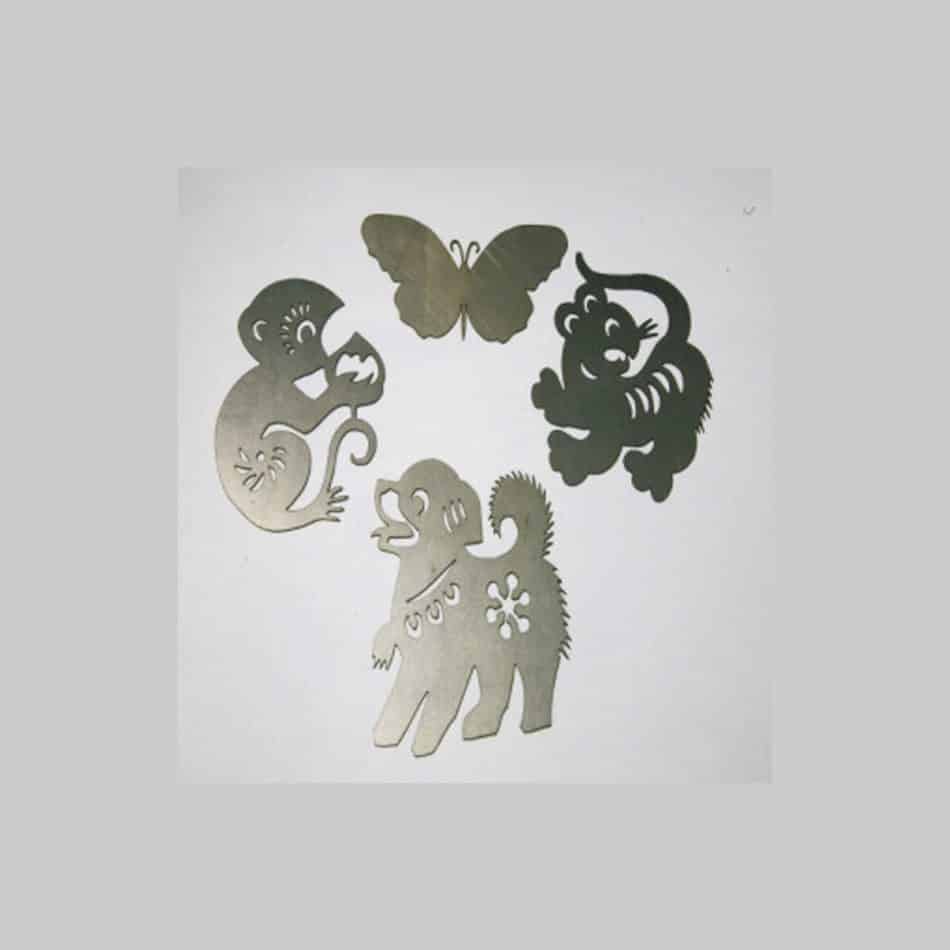

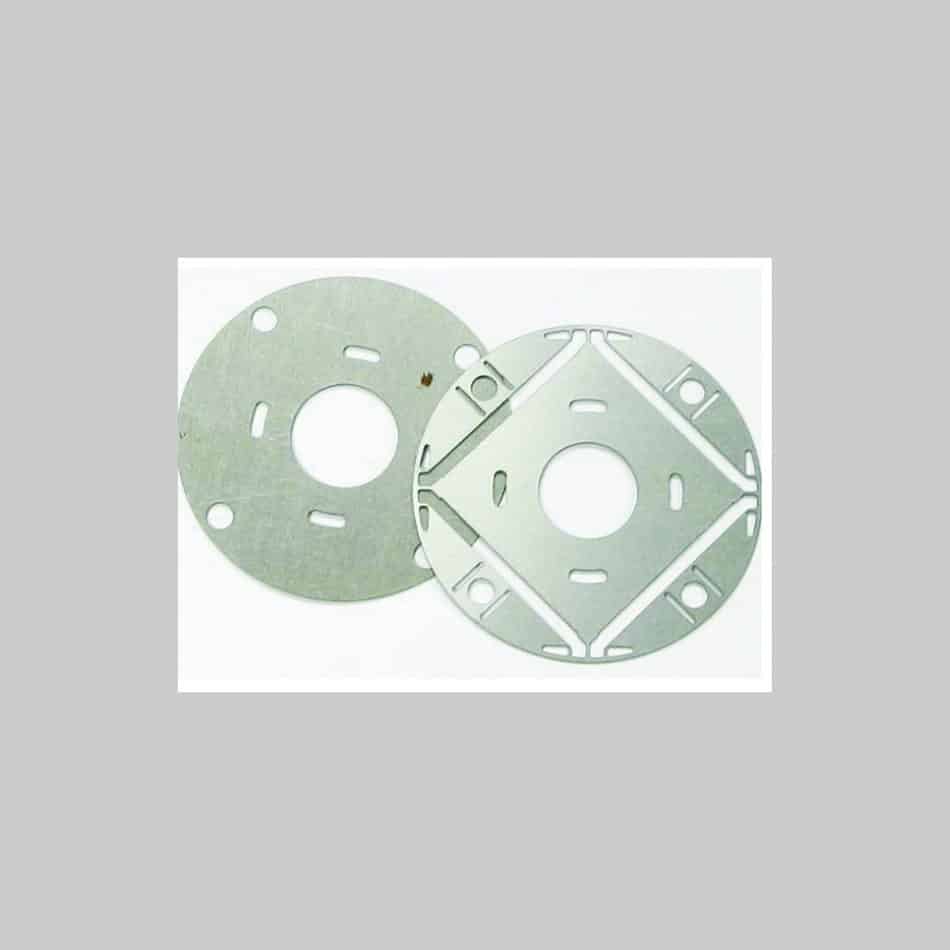

CS2513 – Laser Cutting Samples
