CS1206 – Laser Cutting Machine
Features：
-CS1206 adopts fixed light path
-With Hans cutting V6.3.0 software
-High positioning accuracy, high efficiency and smooth cutting edge
-High repeat positioning accuracy and it can be customized cutting solution according to requirements
-CS1206 adopts liner motor driving, IKO slide rail transmitting and CNC system control
Application：

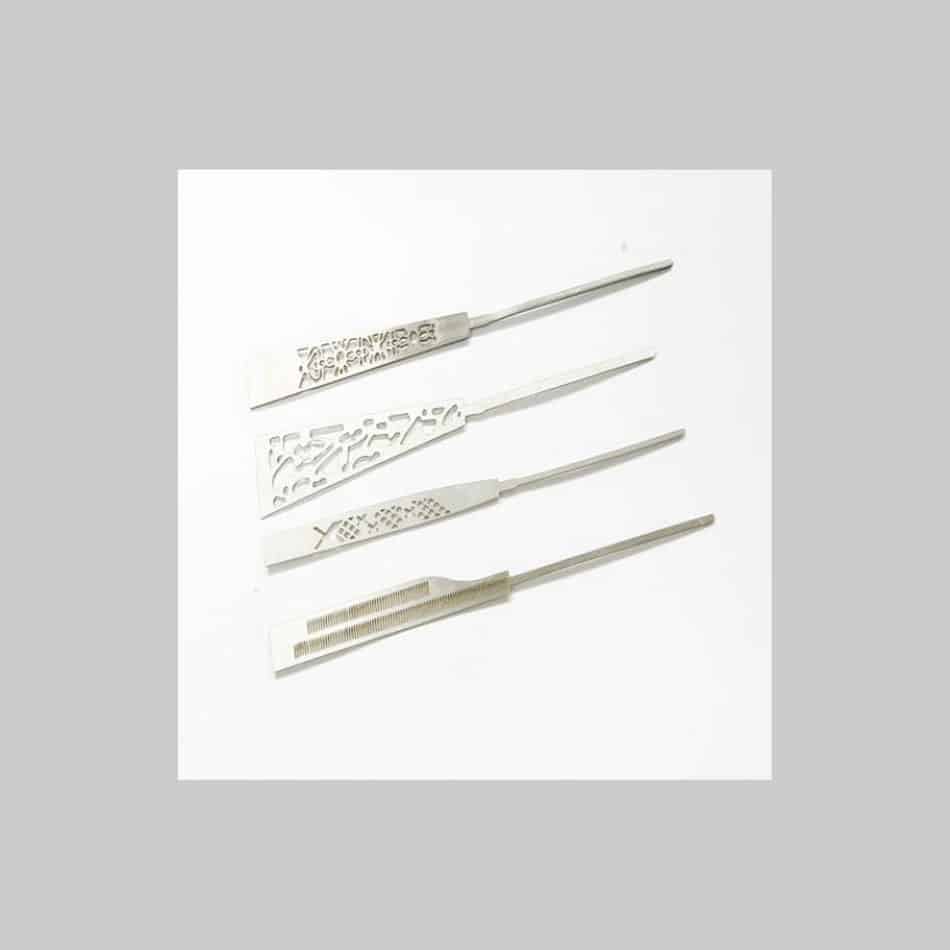

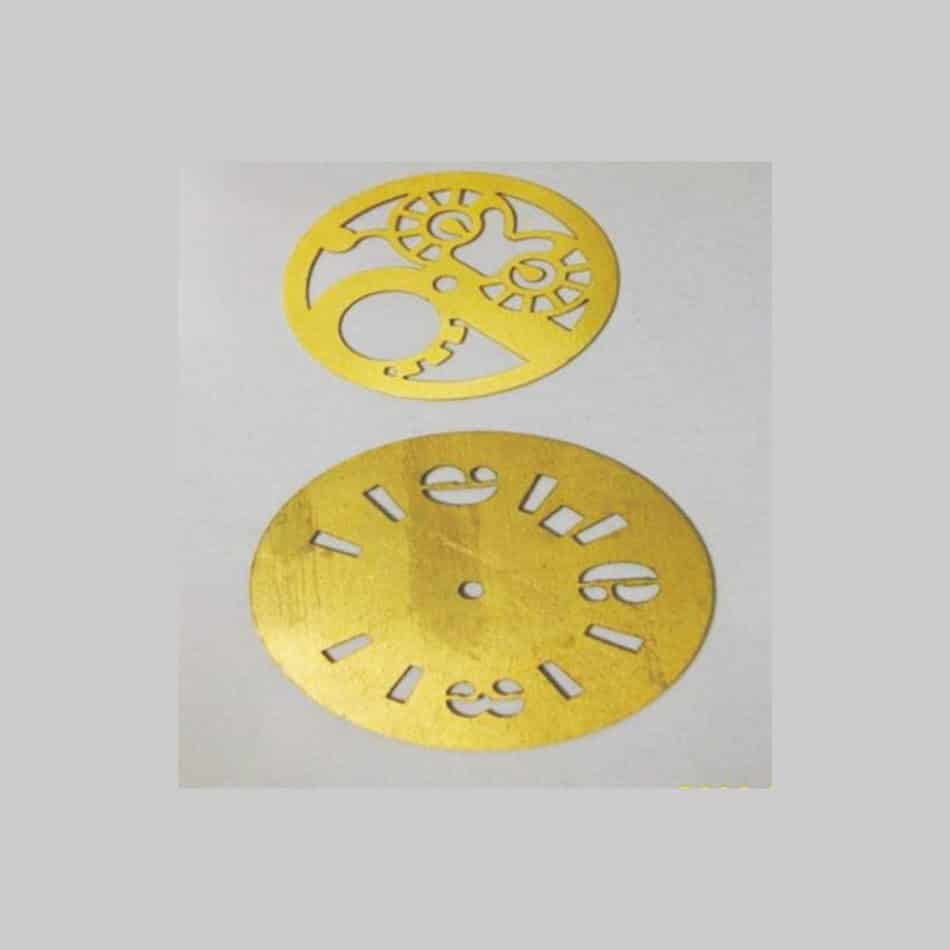

CS1206 is widely used in cutting of carbon steel, mild steel, stainless steel, copper, aluminum and alloy etc.
| Model | Â | CS1206 |
| Distant | Â X axis | Â 1200mm |
| Â Y axis | Â 600mm | |
| Accuracy | Positioning accuracy |  ±0.03mm |
| Positioning repetition accuracy |  ±0.02mm | |
| Workpiece cutting accuracy |  ±0.06mm | |
| Laser type | YAG | |
| Laser Power | 200/500 | |
| Power consumption | ≤18KW | |
| Dimension (LxWxH) | 2020x2010x1430mm | |
| Weight | 1.5T | |
| Gas pressure | 0.7-1.2MPa | |
| Working enviorment | Temperature | 15-30℃ |
| Â Wet | 40-75ï¼… | |
| Â Power supply | 380V/60A | |
