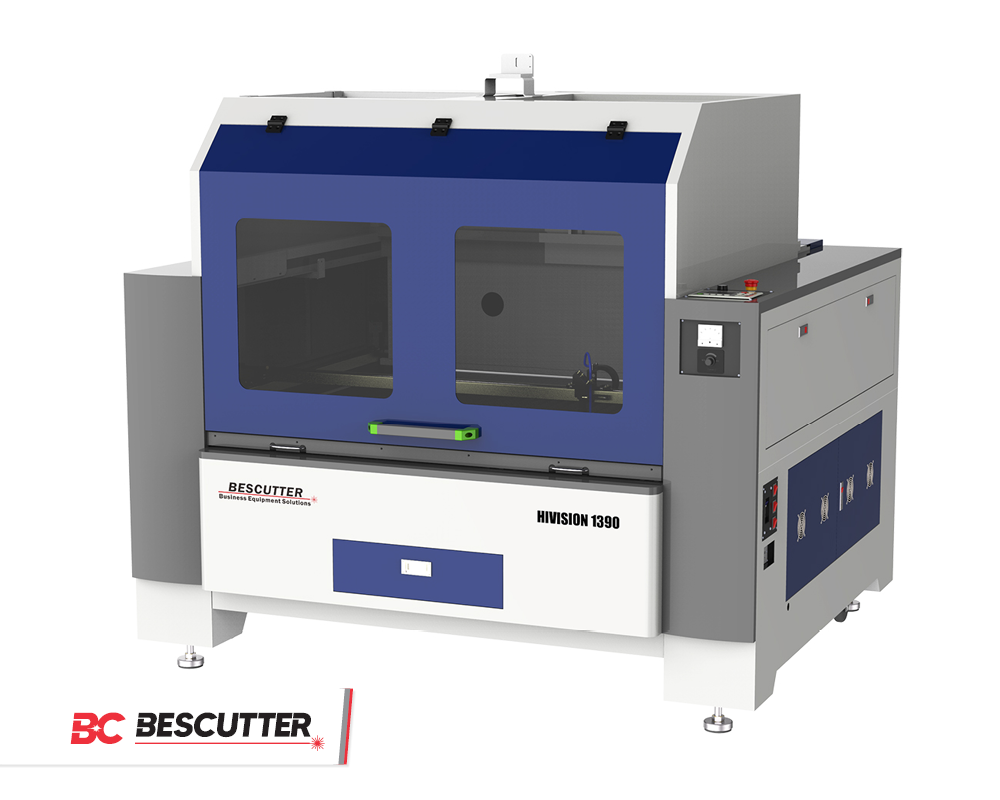

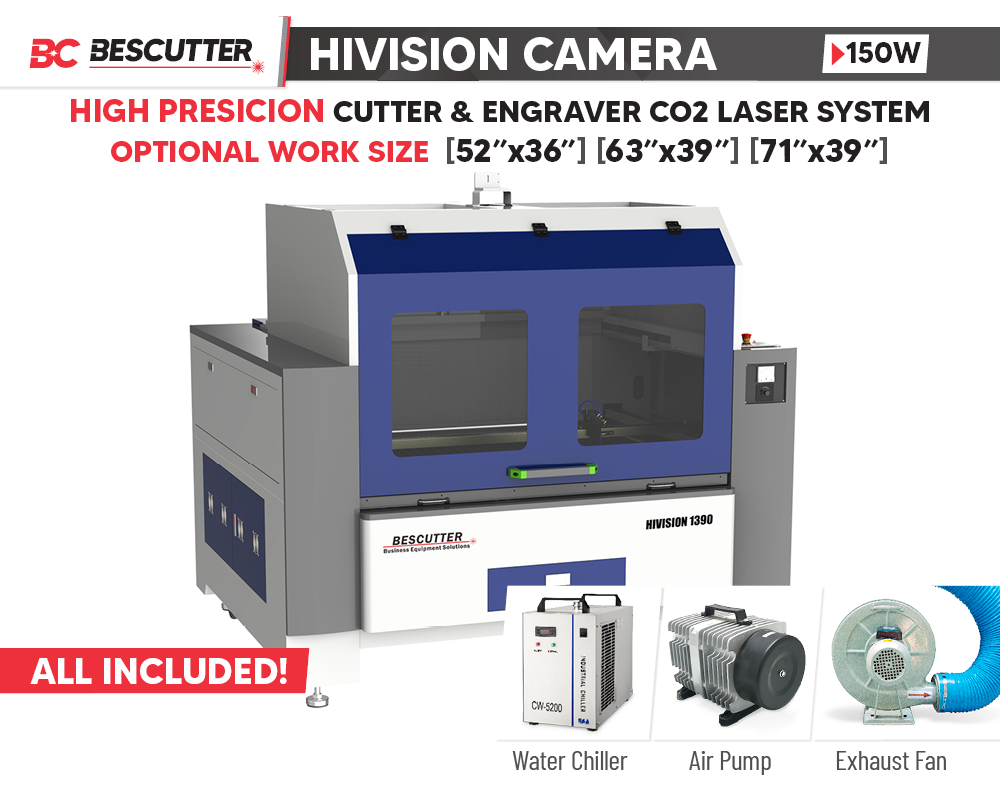

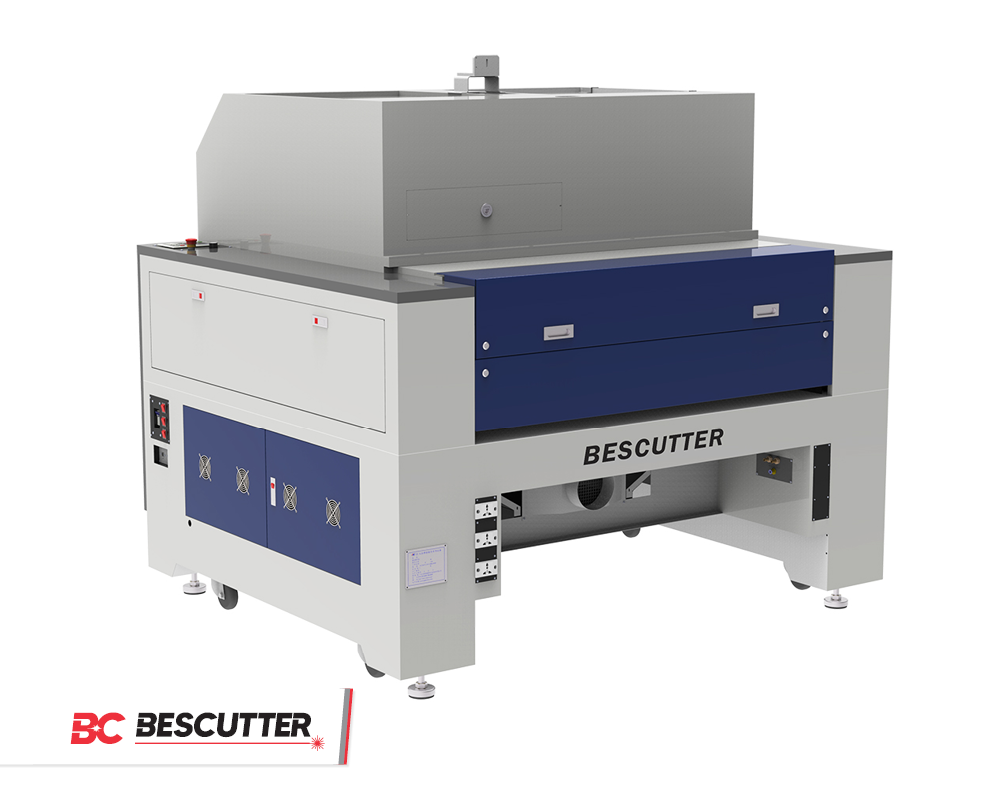

ALL CAMERA POSITIONING SYSTEM INCLUDED BESCUTTER HIVISION [52″X36″] [63″X39″] [71″X39″] CO2 LASER CUTTER & ENGRAVER 150W | STOCK AVAILABLE | FAST DELIVERY

Main Features:

• High-quality Cannon digital camera: Achieve the full format single shot and image recognition, more efficiency of auto-positioning.
• Full format image automatic recognition and generate contour template to cut.
• The software supports contour extraction & curve smoothing: Smooth the extracted data to ensure smooth cutting.
• Automatic correction of camera image distortion
• Date optimization and pre-processing functions: More efficiently & high precision
• Monorail Cutting System: Reduce the wear between the pulley and the guide rail, achieving high efficiency & high precision and durability

___________________________________________________________________________________________

TECH SPECIFICATIONS:

Laser Power:	150W
Laser Tube Type:	CO2 laser tube, 10.6 µm wavelength (ECO2)
Laser Tube Lifetime:	10000 hours
Power Supply:	AC 220V / 60 HZ
Working Area:	52″ x 36″ (1300mm x 900mm) 63″ x 39″ (1600mm x 990mm) 71″ x 39″ (1800mm x 990mm)
Working Platform:	Honeycomb Table
Z-Axis Displacement:	±0.004in (±0.1 mm)
Support Format:	PLT, AI, DXF, DST, BMP, JPG, GIF, PNG, MNG
Max Moving Speed:	39 in/s (± 990 mm)
Operation Mode:	Control Panel
Machine Dimensions:	75″ x 67″ x 73″(1910mm x 1700mm x 1850 mm) 88″ x 70″ x 76″(2240mm x 1780mm x 1940mm) 101″ x 73″ x 80″(2570mm x 1860mm x 2030mm)
Gross Weight:	1212 lbs ( 550Kg )
Class:	Class 4 Laser

MACHINE CONFIGURATION:

Controlling System:	RuiDa Controller
Software:	RDWorks / LightBurn® (Optional)
Transmission:	Belt / Stepper Motor
Drive System:	Inner Rail
Focus Lens:	2.0″ ( 25mm , 50.8mm )
Camera:	High-quality Canon Digital Camera
Technical Support Service:	Zoho Desk Technical Service (Tickets Support)
Support Format:	PLT, AI, DXF, DST, BMP, JPG, GIF, PNG, MNG
Warranty:	One year (exclude lens and mirrors)
Software Compatibility:	Photoshop, Illustrator, CorelDraw and AutoCAD
Connection Method:	USB Memory/ USB Cable/ Ethernet
Certification:	CE, ISO

AUXILIARY EQUIPMENT:

Extraction System:	Exhaust fan 1HP / 750W
Assistant Air:	Air Compressor Hailea 110V
Water Chiller:	S&A CW 5200 Industrial Refrigerated Chiller

Accessories Available for this model

Rotary Attachments for Cylindrical Items

---

Materials can be cut or engraved with our CO2 Laser Systems

---

---
